| Technical Data |
|
| Standard nominal flow rate (standardised to DIN 1343) |
1400 |
| Operating pressure |
110 |
| Nominal size |
6.5 |
| Mounting position |
optional |
| Manual override |
Non-detenting |

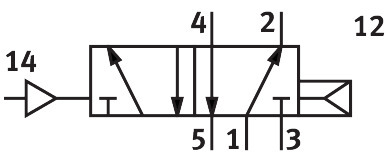

| Symbol |
00991048 |
| Pilot pressure |
210 |
| Max. switching frequency |
40 |
| Switching time off |
28 |
| Switching time on |
24 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| Media temperature |
-1060 |
| Type of mounting |
On sub-base |
| Pilot air port 12 |
G1/8 |
| Pilot air port 14 |
G1/8 |
| Pneumatic connection, port 1 |
G1/4 |
| Pneumatic connection, port 2 |
G1/4 |
| Pneumatic connection, port 3 |
G1/4 |
| Pneumatic connection, port 4 |
G1/4 |
| Pneumatic connection, port 5 |
G1/4 |
| Material seals |
NBR |
| Material housing |
Wrought aluminium alloy |
| Material membrane |
PUR |
