SKU: 8991

GTIN: 4052568001711

Все характеристики

Technical Data

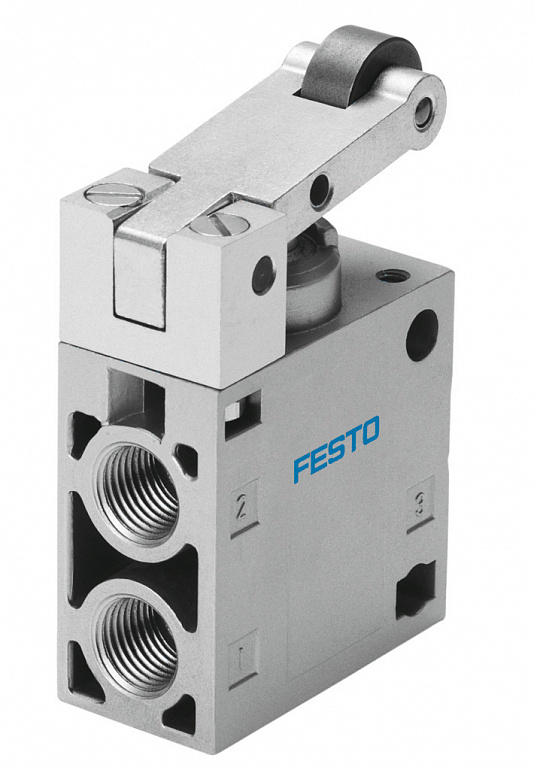

Valve function	3/2 open, monostable
Type of actuation	Mechanical
Standard nominal flow rate (standardised to DIN 1343)	600
pneumatic working port	G1/4
Operating pressure	-0.9510
Design	Poppet seat
Nominal size	7
Type of piloting	Direct
Symbol	00991720
Explosion protection	Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX)
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-1060
Actuating force	48
Product weight	230
Type of mounting	With through-hole
Pneumatic connection, port 1	G1/4
Pneumatic connection, port 2	G1/4
Pneumatic connection, port 3	G1/4
Material seals	NBR
Material housing	Die-cast aluminium
