| Technical Data |
|
| Valve function |

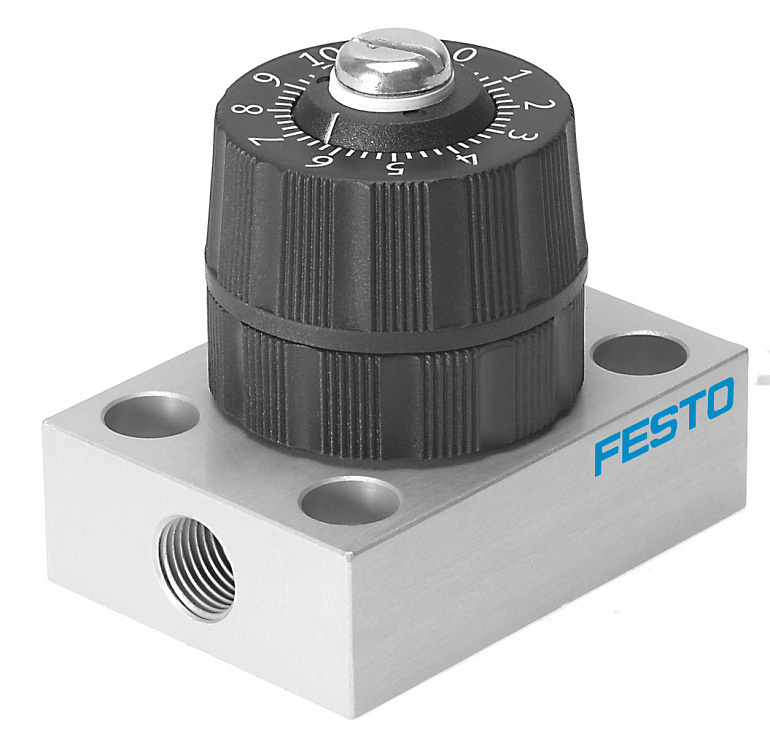

One-way flow control function |
| Pneumatic connection, port 1 |
G1/8 |
| Pneumatic connection, port 2 |
G1/8 |
| Type of actuation |
Manual |
| Adjustment component |
Rotary knob with scale |
| Type of mounting |
On sub-base |
| Standard nominal flow rate in flow control direction |
75.8 |
| Standard nominal flow rate in blocked direction |
245 |
| Operating pressure |
08 |
| Ambient temperature |
-1050 |
| Material housing |
PA-reinforced |
| Mounting position |
optional |
| Symbol |
00991453 |
| Operating pressure from 2 to 1 |
08 |
| Standard nominal flow rate in throttle direction for 0.1->0 MPa (1->0 bar, 14.5->0 psi) |
38 |
| Standard nominal flow rate in return direction for 0.1->0 MPa (1->0 bar, 14.5->0 psi) |
2590 |
| Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi) |
129 |
| Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi) |
245 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [5:4:3]Inert gases |
| Note on operating and pilot medium |
Lubricated operation not possible |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| Media temperature |
-1050 |
| Product weight |
110 |
| Note on materials |
RoHS-compliant |
| Material sub-base |
Wrought aluminium alloy |
| Material seals |
NBRPVC |
| Material screws |
Steel |
