Technical Data
Nominal size	2
Type of actuation	Pneumatic
Design	Poppet valve with spring return

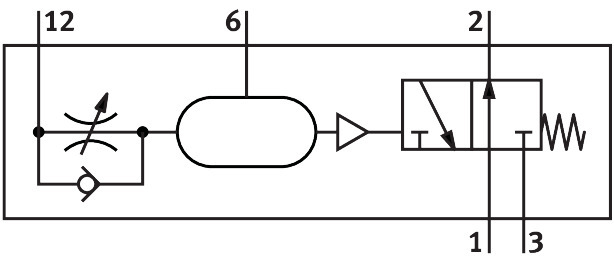

Symbol	00991131
lap	Underlap
Note on forced dynamization	Switching frequency min. 1/week
Operating pressure	2.58
Standard nominal flow rate (standardised to DIN 1343)	60
Adjustable delay time	0.255
Pause duration for reset	50
Repetition accuracy of time setting	± 0.5 s
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation not possible
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Pilot medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature	-1060
Product weight	150
Type of mounting	Either:Front panel mountingOn mounting frame
Pneumatic connection	PK-3
Material housing	Die-cast zinc
