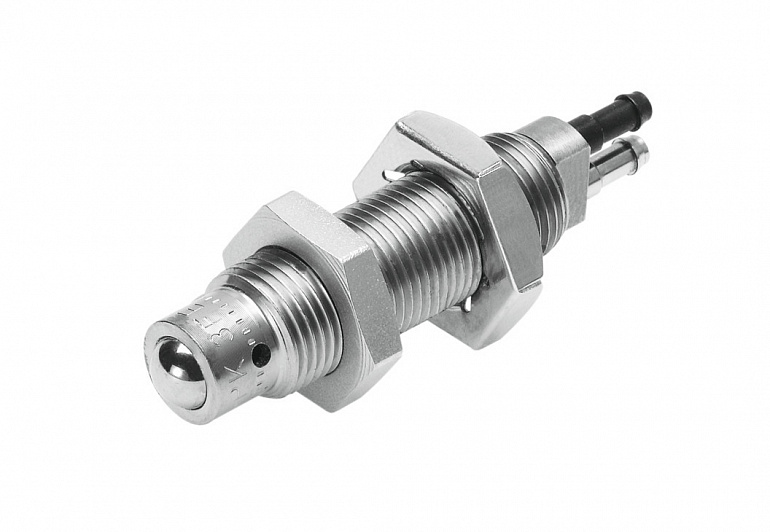

SKU: 12146
GTIN: 4052568009120
Характеристики
| Valve function | 3/2-way, closed, monostable |
| Standard nominal flow rate (standardised to DIN 1343) | 50 |
| Nominal size | 1.5 |
| pneumatic working port | PK-3 |
| Operating pressure | -0.9, 8 |
Все характеристики
| Technical Data | |
| Valve function | 3/2-way, closed, monostable |
| Type of actuation | Mechanical |
| Standard nominal flow rate (standardised to DIN 1343) | 50 |
| pneumatic working port | PK-3 |
| Operating pressure | -0.98 |
| Design | Ball seat |
| Type of reset | Mechanical spring |
| Nominal size | 1.5 |
| Sealing principle | Soft |
| Mounting position | optional |
| Type of piloting | Direct |
| Flow direction | Non-reversible |
| Symbol | 00991097 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Media temperature | -1080 |
| Ambient temperature | -1080 |
| Type of mounting | With through-hole |
| Pneumatic connection, port 1 | PK-3 |
| Pneumatic connection, port 2 | PK-3 |
| Pneumatic connection, port 3 | Not ducted |
