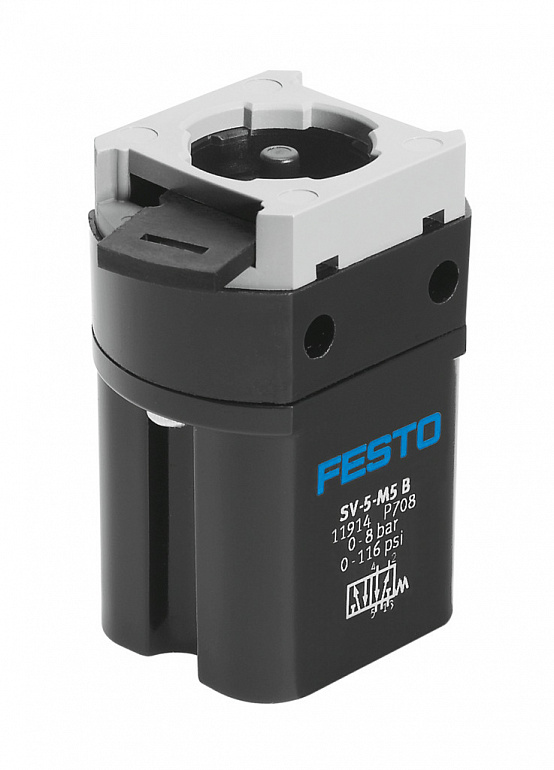

SKU: 11914

GTIN: 4052568002480

Все характеристики

Technical Data
Valve function	5/2-way, monostable
Type of actuation	Manual
Standard nominal flow rate (standardised to DIN 1343)	95
Operating pressure	08
Design	Poppet valve with spring return
Type of reset	Mechanical spring
Nominal size	2.3
Sealing principle	Soft
Mounting position	optional
Type of piloting	Direct

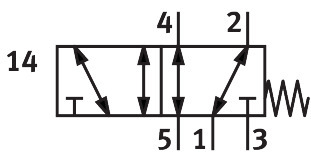

Symbol	00991339
lap	Overlap
Explosion protection	Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX)
Operating medium	Compressed air to ISO 8573-1:2010 [-:-:-]
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-1060
Actuating force	17
Product weight	53
Type of mounting	Front panel mountingWith through-hole
Pneumatic connection, port 1	M5
Material seals	NBR
Material housing	PolymerBrass
