SKU: 184135

GTIN: 4052568014407

Все характеристики

Technical Data
Valve function	2x3/2-way, monostable, closed
Standard nominal flow rate (standardised to DIN 1343)	70
pneumatic working port	PK-3
Operating pressure	08
Type of reset	Mechanical spring
Nominal size	2.5
Sealing principle	Soft
Mounting position	optional
Type of piloting	Direct
Flow direction	Non-reversible

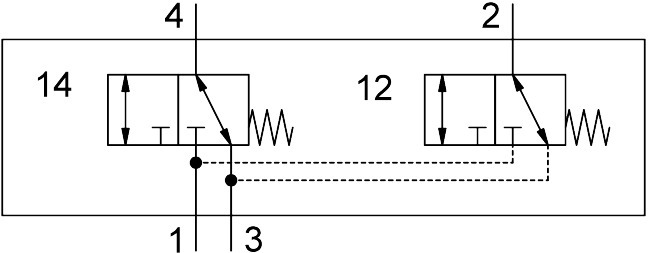

Symbol	00997337
Explosion protection	Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX)
Operating medium	Compressed air to ISO 8573-1:2010 [7:-:-]
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-1060
Product weight	34
Type of mounting	With through-hole
Pneumatic connection, port 1	PK-3
Pneumatic connection, port 2	PK-3
Material seals	NBR
