| Technical Data |
|
| Valve function |
3/2-way, monostable |
| Type of actuation |
Mechanical |
| Construction width |
20 |
| Standard nominal flow rate (standardised to DIN 1343) |
870 |
| pneumatic working port |
G1/4 |
| Operating pressure |
-0.9510 |
| Design |
One-way roller lever with idle returnPoppet seat |
| Type of reset |
Mechanical spring |
| Max. stroke limit (hard) |
11 |
| Nominal size |
6 |
| Instructions on use |
Risk of pinching |
| Sealing principle |
Soft |
| Mounting position |
optional |
| Type of piloting |
Direct |
| Flow direction |
Reversible |

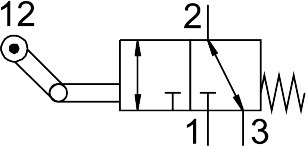

| Symbol |
00991348 |
| lap |
Zero overlap |
| Max. actuating speed with lateral actuation |
0.7 |
| Max. switching frequency |
3 |
| Cam angle |
30 |
| Explosion protection |
Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX) |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
1 - Low corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Media temperature |
-1060 |
| Ambient temperature |
-1060 |
| Note on ambient temperature |
Influence of heat on wear |
| Actuating force |
32.7 |
| Product weight |
218 |
| Type of mounting |
With through-hole |
| Pneumatic connection, port 1 |
G1/4 |
| Pneumatic connection, port 2 |
G1/4 |
| Pneumatic connection, port 3 |
G1/4 |
| Note on materials |
RoHS-compliant |
| Material mounting adaptor |
Galvanised steel |
| Material seals |
NBR |
| Material housing |
Anodised wrought aluminium alloy |
