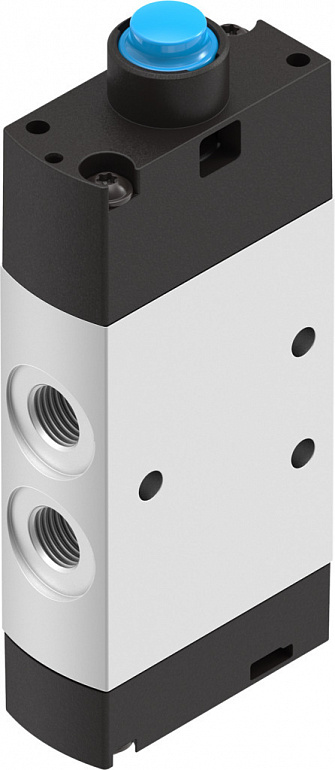

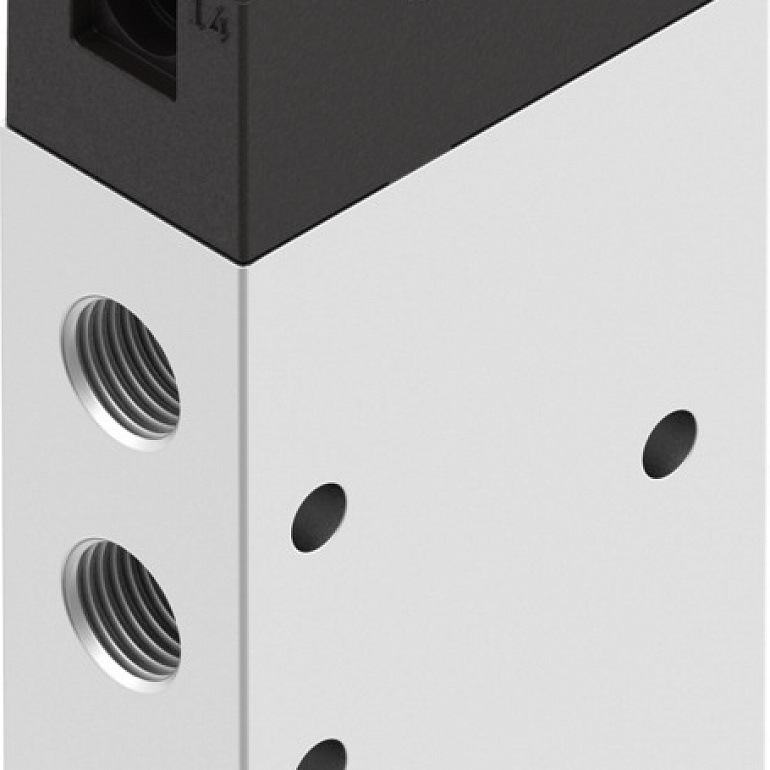

| Technical Data |
|
| Valve function |
5/2-way, monostable |
| Type of actuation |
Mechanical |
| Construction width |
20 |
| Standard nominal flow rate (standardised to DIN 1343) |
750 |
| pneumatic working port |
G1/8 |
| Operating pressure |
2.510 |
| Design |
Piston gate valve |
| Type of reset |
Mechanical spring |
| Nominal size |
5.2 |
| Instructions on use |
Do not use as a mechanical stop |
| Sealing principle |
Soft |
| Mounting position |
optional |
| Type of piloting |
Pilot actuated |
| Pilot air supply |
Internal |
| Flow direction |
Non-reversible |

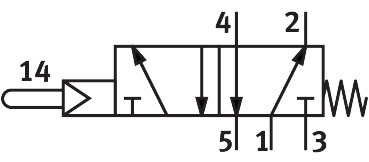

| Symbol |
00992218 |
| lap |
Overlap |
| Pilot pressure |
36.25145 |
| Max. switching frequency |
3 |
| Explosion protection |
Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX) |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Media temperature |
-1060 |
| Ambient temperature |
-1060 |
| Actuating force |
14 |
| Product weight |
151 |
| Type of mounting |
With through-hole |
| Pilot air port 12/14 |
M5 |
| Pneumatic connection, port 1 |
G1/8 |
| Pneumatic connection, port 2 |
G1/8 |
| Pneumatic connection, port 3 |
G1/8 |
| Pneumatic connection, port 4 |
G1/8 |
| Pneumatic connection, port 5 |
G1/8 |
| Note on materials |
RoHS-compliant |
| Material cover |
PA-reinforced |
| Material seals |
NBR |
| Material housing |
Anodised wrought aluminium alloy |
