SKU: 4938

GTIN: 4052568000769

Все характеристики

Technical Data
Valve function	3/2-way, monostable, open/closed
Type of actuation	Mechanical
Standard nominal flow rate (standardised to DIN 1343)	140
pneumatic working port	G1/8
Operating pressure	-0.958
Design	Piston seat
Nominal size	3.5
Type of piloting	Direct

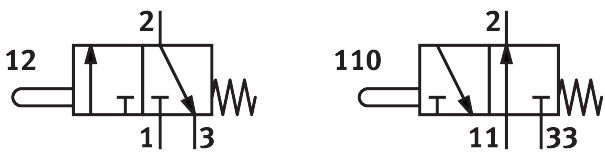

Symbol	00991832
Operating medium	Compressed air to ISO 8573-1:2010 [-:-:-]
Note on operating and pilot medium	Lubricated operation possible (in which case lubricated operation will always be required)
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-1060
Actuating force	28
Actuating force, normally closed	37.53
Product weight	90
Type of mounting	With through-hole
Pneumatic connection, port 1	G1/8
Pneumatic connection, port 2	G1/8
Pneumatic connection, port 3	G1/8
Material seals	NBR
Material housing	Anodised aluminium
