SKU: 8994

GTIN: 4052568008840

Все характеристики

Technical Data
Valve function	5/2-way, monostable
Standard nominal flow rate (standardised to DIN 1343)	550
pneumatic working port	G1/4
Operating pressure	-0.9510
Design	Poppet seat
Nominal size	7
Type of piloting	Direct

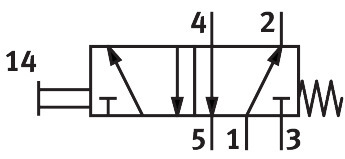

Symbol	00991340
Explosion protection	Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX)
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-1060
Actuating force	34
Product weight	320
Type of mounting	With through-hole
Pneumatic connection, port 1	G1/4
Pneumatic connection, port 2	G1/4
Pneumatic connection, port 3	G1/4
Pneumatic connection, port 4	G1/4
Pneumatic connection, port 5	G1/4
Material seals	NBR
Material housing	Die-cast aluminium
