SKU: 7334

GTIN: 4052568111038

Все характеристики

Technical Data
Valve function	4/3 exhausted
Type of actuation	Manual
Standard nominal flow rate (standardised to DIN 1343)	125
pneumatic working port	M5
Operating pressure	08
Type of reset	Mechanical spring
Nominal size	4
Sealing principle	Soft
Type of piloting	Pilot actuated
Flow direction	Non-reversible

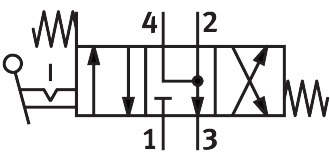

Symbol	00991329
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Pneumatic connection, port 1	M5
Pneumatic connection, port 2	M5
Pneumatic connection, port 3	Not ducted
