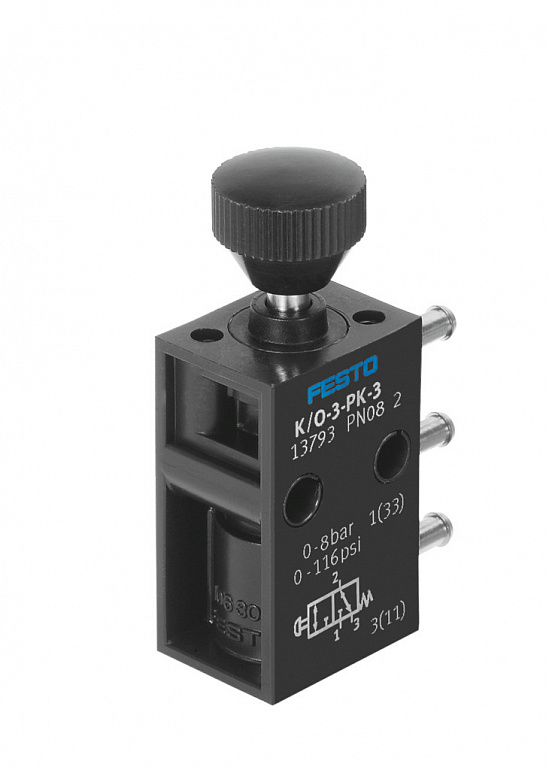

SKU: 13793
GTIN: 4052568066130
Характеристики
| Valve function | 3/2-way, monostable, open/closed |
| Standard nominal flow rate (standardised to DIN 1343) | 80 |
| Pneumatic connection, port 1 | PK-3 |
| pneumatic working port | PK-3 |
| Operating pressure | 0, 8 |
Все характеристики
| Technical Data | |
| Valve function | 3/2-way, monostable, open/closed |
| Standard nominal flow rate (standardised to DIN 1343) | 80 |
| pneumatic working port | PK-3 |
| Operating pressure | 08 |
| Design | Piston seat |
| Nominal size | 2.5 |
| Type of piloting | Direct |

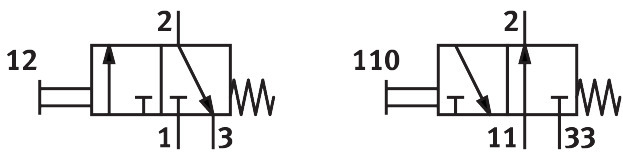

| Symbol | 00991838 |
| Operating medium | Compressed air to ISO 8573-1:2010 [-:-:-] |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -1060 |
| Actuating force, normally closed | 24 |
| Actuating force, normally open | 17 |
| Product weight | 20 |
| Type of mounting | With through-hole |
| Pneumatic connection, port 1 | PK-3 |
| Pneumatic connection, port 2 | PK-3 |
| Pneumatic connection, port 3 | PK-3 |
| Material seals | NBR |
| Material housing | Polymer |
Документы
| VHEM_EN.PDF |
| Datasheet |
