SKU: 10748

GTIN: 4052568002244

Все характеристики

Technical Data
Valve function	3/2-way, monostable, open/closed
Type of actuation	Mechanical
Standard nominal flow rate (standardised to DIN 1343)	80
pneumatic working port	PK-3
Operating pressure	08
Design	Piston seat
Nominal size	2.5
Type of piloting	Direct

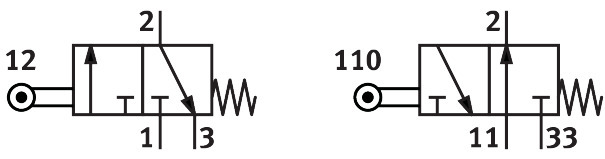

Symbol	00991834
Operating medium	Compressed air to ISO 8573-1:2010 [-:-:-]
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-1060
Actuating force, normally closed	10
Actuating force, normally open	15
Product weight	18
Type of mounting	With through-hole
Pneumatic connection, port 1	PK-3
Pneumatic connection, port 2	PK-3
Pneumatic connection, port 3	PK-3
Material seals	NBR
Material housing	POM
