SKU: 576656

GTIN: 4052568225407

Все характеристики

Technical Data
Nominal size	4
Type of actuation	Pneumatic
Mounting position	optional

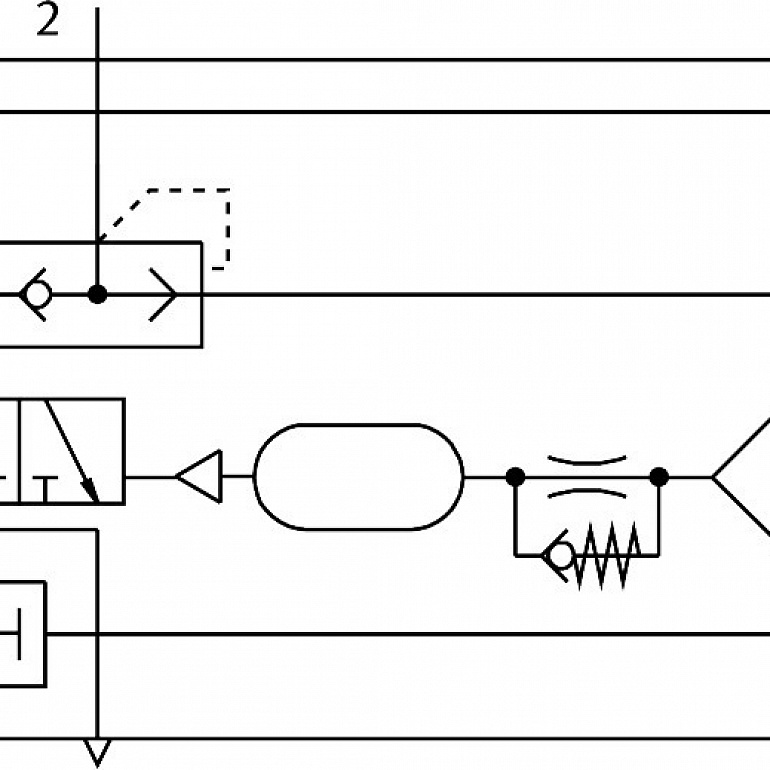

Symbol	00991790
Safety function	Two-hand control
Performance Level (PL)	Two-hand operation/category 1, Performance Level c
Operating pressure	48
Standard nominal flow rate (standardised to DIN 1343)	50
CE mark (see declaration of conformity)	To EC Machinery Directive
UKCA marking (see declaration of conformity)	To UK regulations for machines
Explosion protection	Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX)
Certificate issuing authority	IFA 1201046Intertek UK-MCR-0080
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (in which case lubricated operation will always be required)
Shock resistance	Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	060
Product weight	420
Type of mounting	Either:With through-holeVia female thread
Pneumatic connection, port 2	G1/8
Pneumatic connection, port 3	G1/8
Note on materials	RoHS-compliant
Material cover	Die-cast aluminium
Material seals	NBR
Material housing	Wrought aluminium alloyAnodised
