| Technical Data |
|
| Design |

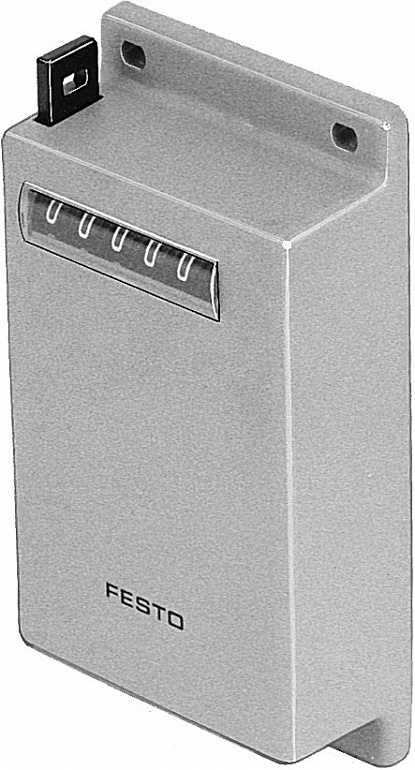

Mechanical sequence counter with pneumatic drive |
| Type of reset |
Pushbutton or pneumatic signal |
| Display |
6-digit |
| Drop-off pressure drive |
0.2 ± 0.1 bar |
| Drop-off pressure reset |
0.15 ± 0.1 bar |
| Response pressure drive |
0.6 ± 0.2 bar |
| Response pressure reset |
0.6 ± 0.2 bar |
| Operating pressure |
28 |
| Min. reset pressure |
2 |
| Min. pulse length drive |
10 |
| Min. pulse length reset |
180 |
| Min. pause period drive |
15 |
| Min. pause period reset |
50 |
| Explosion protection |
Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX) |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation not possible |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Ambient temperature |
-1060 |
| Product weight |
155 |
| Type of mounting |
With through-hole |
| Pneumatic connection |
M5 |
| Material housing |
ABS |
