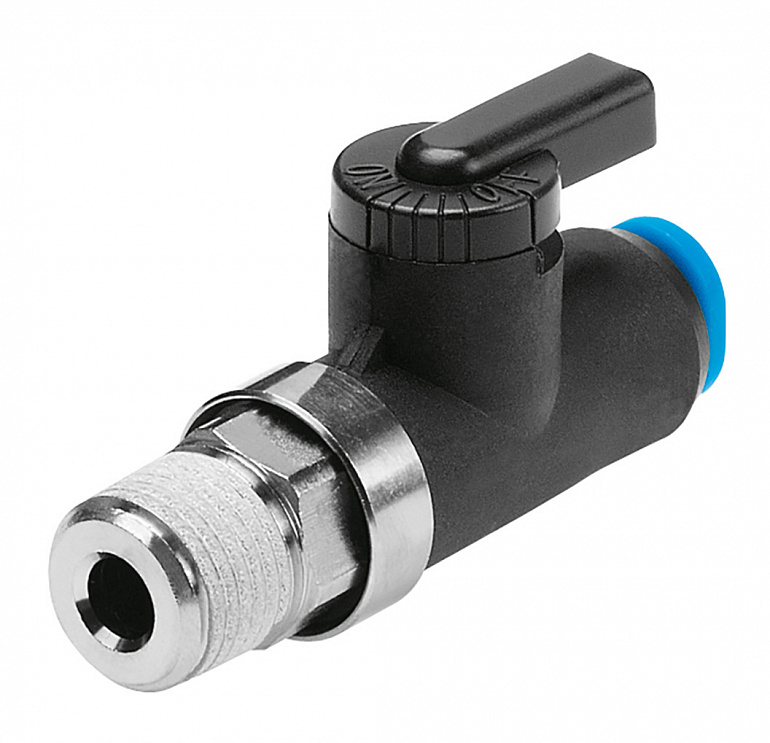

| Technical Data |
|
| Valve function |
2/2 bistable |
| Pneumatic connection, port 1 |
R1/8 |
| Pneumatic connection, port 2 |
QS-4 |
| Type of actuation |
Manual |
| Type of mounting |
Screw-in |
| Standard nominal flow rate (standardised to DIN 1343) |
235 |
| Nominal size |
2.5 |
| Operating pressure |
-110 |
| Ambient temperature |
060 |
| Material housing |
PBTP |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Sealing principle |
Soft |
| Design |
Ball valve |
| Symbol |
00991458 |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Product weight |
14 |
| Material screwed plug |
Nickel-plated brass |
| Note on materials |
RoHS-compliant |
