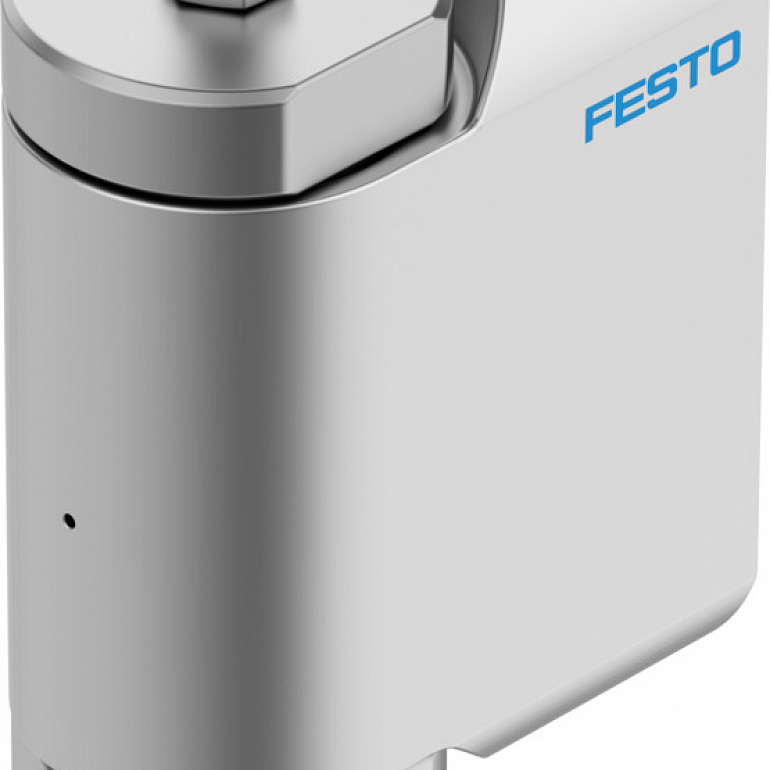

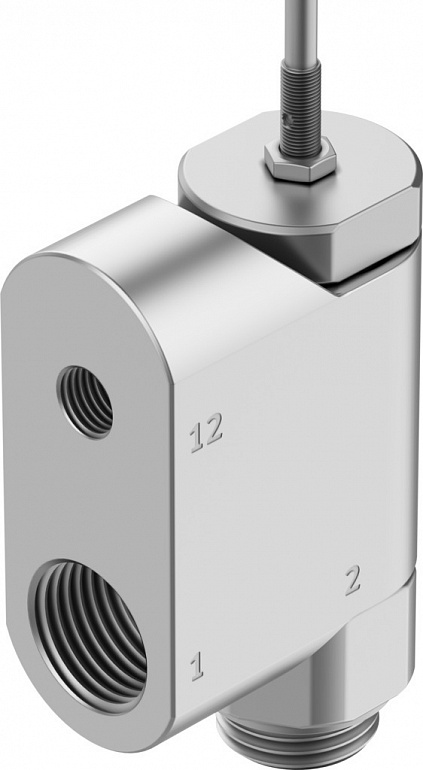

SKU: 8177454

GTIN: 4052568628390

Все характеристики

Technical Data
Valve function	2/2-way, closed, monostable
Pneumatic connection, port 1	G1/2
Pneumatic connection, port 2	G1/2
Type of actuation	Pneumatic
Type of mounting	Screw-inVia male thread
Nominal flow rate standardised according to ISO 8778	1470
Standard flow rate 0.6->0 MPa (6->0 bar, 87->0 psi) in according to ISO 8778	2560
Nominal flow rate 2->1 normalised according to ISO 8778	1560
Standard flow rate 0.6->0 MPa (6->0 bar, 87->0 psi) 2->1 according to ISO 8778	2580
Operating pressure	0.510
Ambient temperature	-560
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
CE mark (see declaration of conformity)	To EU EMC DirectiveIn accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)	To UK instructions for EMCTo UK RoHS instructions
Mounting position	optional
Special characteristics	Resistant to welding spatter
Type of seal on screwed plug	Sealing ring
Type of reset	Mechanical spring
Pilot air supply	External
Symbol	00997382
Measuring principle	Inductive
Switching element function	N/C contact
Rotatability	360°/no continuous swivelling permissible
Reverse polarity protection sensor	For all electrical connections
Note on forced dynamization	Current information on this topic can be found in Technical Report V
Switching position sensing	Normal position via sensor
Switch-off pressure	0.050.2
Switch-on pressure	0.150.4
Pneumatic off range	0.04
Pilot pressure	14.5145
Switching time off	34
Switching time on	11
Nominal operating voltage DC	24
Switching output	PNP
Note on operating and pilot medium	Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364 zone III
Suitability for the production of Li-ion batteries	Suitable for battery production according to the Festo internal definition of the degree of severity F1A with restrictions regarding the use of Cu/Zn/Ni
Media temperature	-560
Pilot medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Nominal torque	23
Tolerance for nominal tightening torque	± 20%
Product weight	145
Operating voltage range, DC sensor	1030
Short-circuit strength sensor	Yes
Idle current sensor	10
Max. output current sensor	200
Voltage drop sensor	3
Electrical connection 1, function	Switching output
Electrical connection 1, connection type	Cable with plug
Electrical connection 1, connector system	M12x1, A-coded to EN 61076-2-101
Electrical connection 1, number of connections/cores	4
Electrical connection 1, used connections/cores	3
Electrical connection 1, connection pattern	00991168
Cable length	0.3
Pilot air port 12	G1/8
Note on materials	RoHS-compliant
Material seals	HNBRNBRTPE-U(PU)
Material hollow bolt	Wrought aluminium alloy
Material cable sheath	PVC
Material swivel fitting	Wrought aluminium alloy
Material sensor bracket	High-alloy stainless steel
Locking nut material	High-alloy stainless steel
