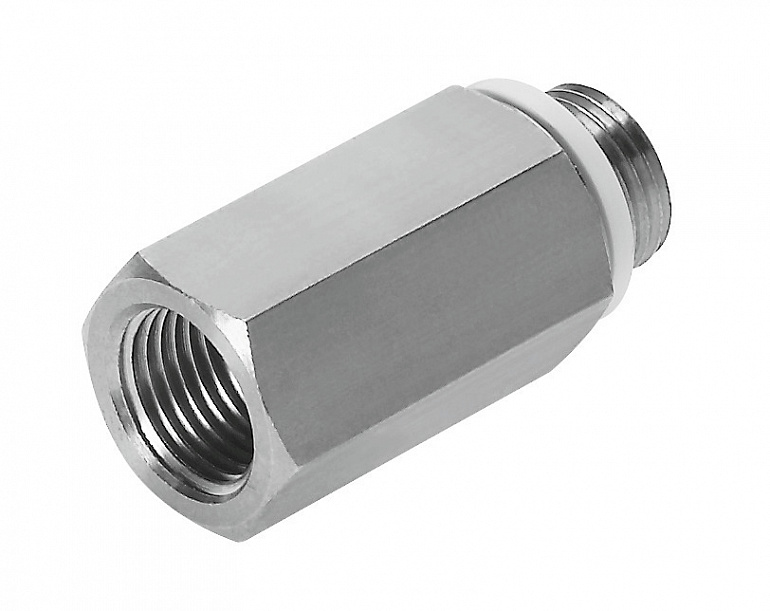

SKU: 3324
GTIN: 4052568000387
Характеристики
| Valve function | Non-return function |
| Pneumatic connection, port 1 | G1/8 |
| Pneumatic connection, port 2 | G1/8 |
| Operating pressure | 0.4, 8 |
| Material housing | Brass |
Все характеристики
| Technical Data | |
| Valve function | Non-return function |
| Pneumatic connection, port 1 | G1/8 |
| Pneumatic connection, port 2 | G1/8 |
| Type of mounting | In-line installation |
| Standard nominal flow rate (standardised to DIN 1343) | 280 |
| Operating pressure | 0.48 |
| Ambient temperature | -1060 |
| Material housing | Brass |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Symbol | 00991455 |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Media temperature | -1060 |
| Product weight | 21 |
| Material seals | NBR |
Приемущества
| Valve function: non-return function |
| Screw-in or in-line installation |
| With connecting thread at both ends, push-in connector at both ends, thread/push-in connector |
Документы
| H_HA_HB_EN.PDF |
| Datasheet |
