| Technical Data |
|
| Valve function |
AND function |
| Pneumatic connection, port 1 |
PK-3 |
| Pneumatic connection, port 2 |
PK-3 |
| Type of mounting |
Front panel mounting |
| Standard nominal flow rate (standardised to DIN 1343) |
100 |
| Operating pressure |
1.68 |
| Ambient temperature |
-1060 |
| Material housing |
POM |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Explosion protection |
The information in the certificate must be observed!Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX) |
| Nominal size |
2.5 |
| Mounting position |
optional |

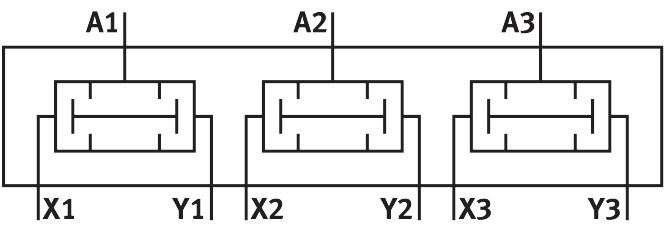

| Symbol |
00991462 |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Media temperature |
-1060 |
| Product weight |
85 |
| Pneumatic connection, port 3 |
PK-3 |
| Material seals |
NBR |
