| Technical Data |
|
| Valve function |

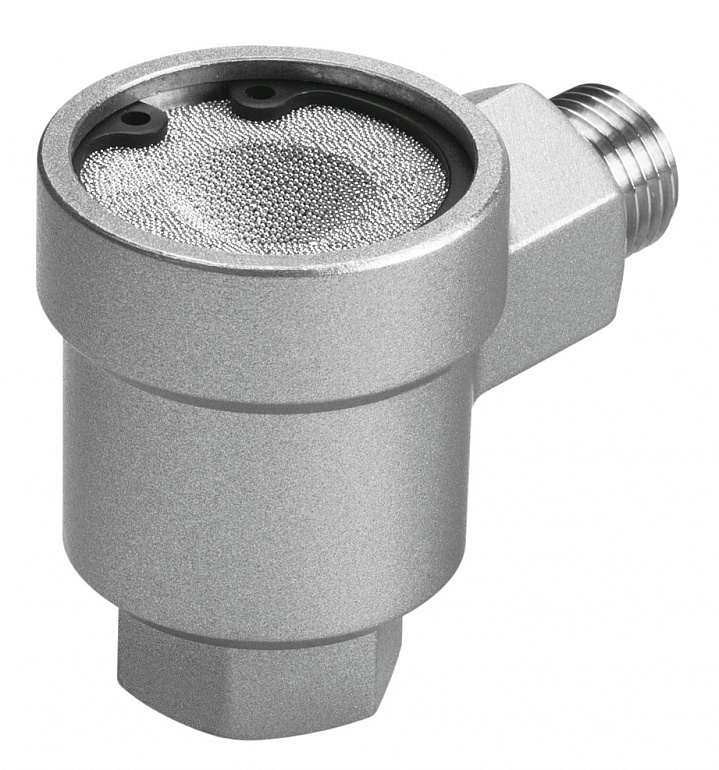

Quick exhaust |
| Selection of additional functions |
With silencer |
| Pneumatic connection, port 1 |
G1/4 |
| Pneumatic connection, port 2 |
G1/4 |
| Type of mounting |
Screw-in |
| Standard nominal flow rate, exhaust 0.6->0.5 MPa (6->5 bar, 87->72.5 psi) |
1100 |
| Standard nominal flow rate, exhaust 0.6->0 MPa (6->0 bar, 87->0 psi) |
2300 |
| Standard nominal flow rate, air flow 0.6->0,5 MPa (6->5 bar, 87->72.5 psi) |
960 |
| Operating pressure |
0.510 |
| Ambient temperature |
-2075 |
| Material housing |
Die-cast zinc |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Nominal size |
7 |
| Mounting position |
optional |
| Symbol |
00991460 |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Media temperature |
-2075 |
| Sound pressure level |
95 |
| Product weight |
120 |
| Material seals |
NBR |
