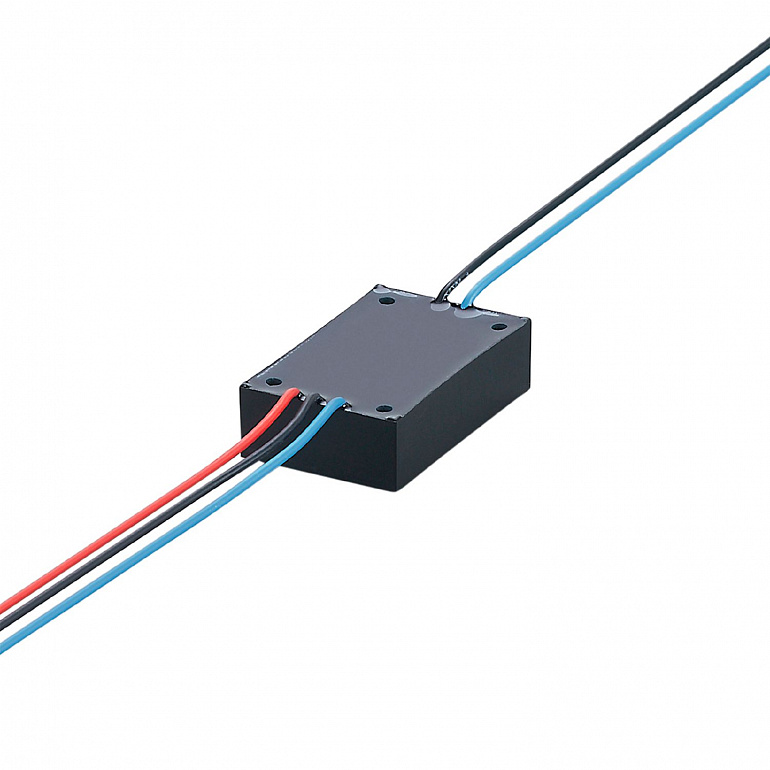

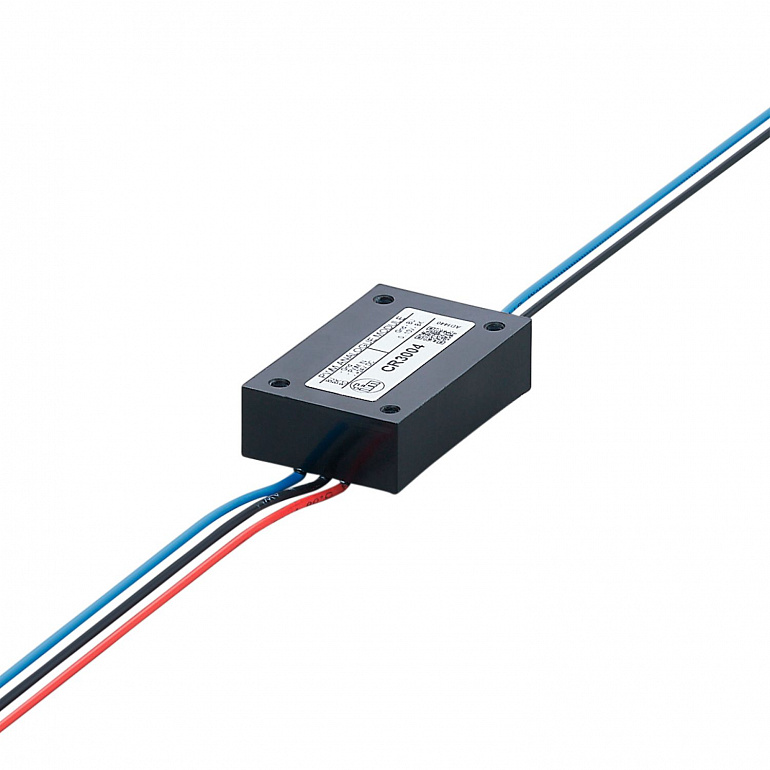

| Design |
housing module |
| Operating voltage |
24...30 DC |
| Current consumption |
< 20 |
| Reverse polarity protection |
yes |
| Number of inputs and outputs |
Number of analog outputs: 1 |
| Number of PWM inputs |
1 |
| PWM frequency inputs |
122 |
| Number of analog outputs |
1 |
| Analog voltage output |
0...10 |
| Ambient temperature |
-40...85 |
| Note on ambient temperature |
| wires flexed -5...105 °C | | wires at rest -30...105 °C |
|
| Protection |
IP 67 |
| Weight |
70.5 |
| Dimensions |
54 x 34 x 15 |
| Material |
polyamide reinforced glass-fiber |
| Pack quantity |
1 pcs. |
| Input |
Cable: 0.28 m; / Core ends with wire end sleeves |
