Характеристики
| Design | for side lens, for types, OJ |
| Material | Mounting and fine adjustment bracket: stainless steel (1.4301 / 304); socket head screws: stainless steel |

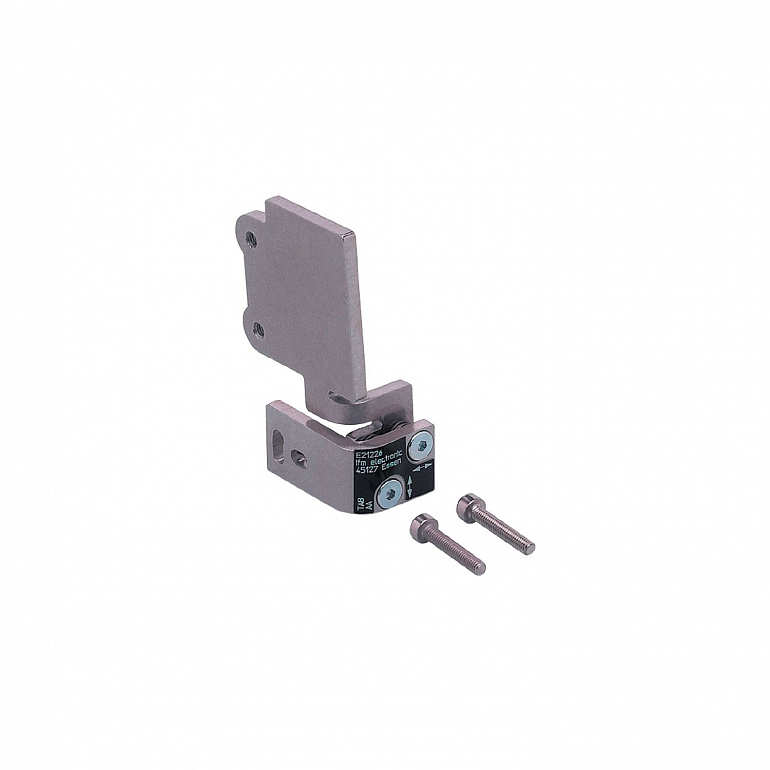

| Product designation | Mounting and fine adjustment bracket for laser units |
Все характеристики
| Application | |
| Design | for side lens, for types, OJ |
| Mechanical data | |
| Weight | 62.5 |
| Dimensions | 57.5 x 36.4 x 19 |
| Material | Mounting and fine adjustment bracket: stainless steel (1.4301 / 304); socket head screws: stainless steel |
| Alignment range | fine adjustment in 2 axes ± 2° |
| Accessories | |
| Items supplied | <table><tr><td>socket head screws: 2 x (M3 x 16 mm)</td></tr></table> |
| Remarks | |
| Pack quantity | 1 pcs. |
Приемущества
| User-friendly alignment of the laser beam to a laser receiver or prismatic reflector |
| High vibration resistance |
| Easy, quick and inexpensive fixing |
| Robust design for use in harsh industrial environments |
| For free-standing mounting |
