Характеристики
| Design | with end stop |
| Material | brass white bronze coated; Nuts: brass white bronze coated |

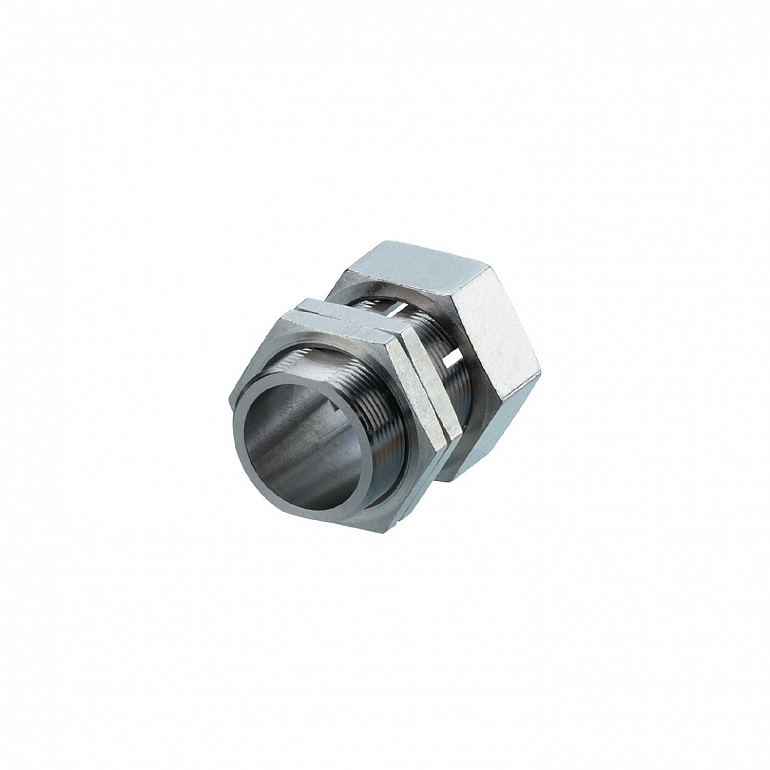

| Product designation | Mounting sleeve |
Все характеристики
| Application | |
| Design | with end stop |
| Mechanical data | |
| Weight | 67.75 |
| Installation instruction | Align the sensing face of the sensor to the right (see scale drawing); due to the material brass, negative sensing range reductions may occur (reduced sensing range) |
| Dimensions | M22 x 1 / L = 33.5 |
| Thread designation | M22 x 1 |
| Inside diameter | 18 |
| Material | brass white bronze coated; Nuts: brass white bronze coated |
| Tightening torque | 5; (lock nuts: 20) |
| Accessories | |
| Items supplied | <table><tr><td>Nuts: 2</td></tr></table> |
| Remarks | |
| Pack quantity | 1 pcs. |
Приемущества
| End stop for defined installation position |
| For mounting cylindrical sensors |
| Easy and quick replacement without readjustment |
| Reliable protection against damage |
| Robust design for use in harsh industrial environments |
