Характеристики
| Design | with end stop |
| Material | steel galvanized; weld coated; lock nuts: steel galvanized; weld coated |

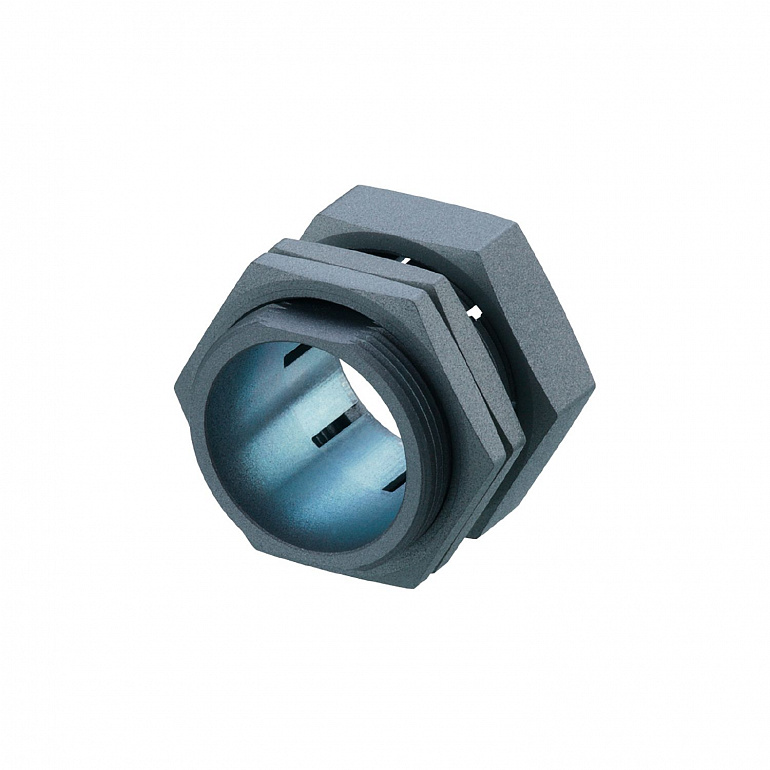

| Product designation | Mounting sleeve |
Все характеристики
| Design | with end stop | |
| Weight | 132.6 | |
| Installation instruction | Align the sensing face of the sensor to the right (see scale drawing) | |
| Dimensions | M36 x 1.5 / L = 33.5 | |
| Thread designation | M36 x 1.5 | |
| Inside diameter | 30 | |
| Material | steel galvanized; weld coated; lock nuts: steel galvanized; weld coated | |
| Tightening torque | 5; (lock nuts: 40) | |
| Items supplied |
|
|
| Pack quantity | 1 pcs. |
Приемущества
| End stop for defined installation position |
| For mounting cylindrical sensors |
| Easy and quick replacement without readjustment |
| Reliable protection against damage |
| Weld slag resistant coating |
