| Ambient temperature |
-30...80 |
| Weight |
91 |
| Material |

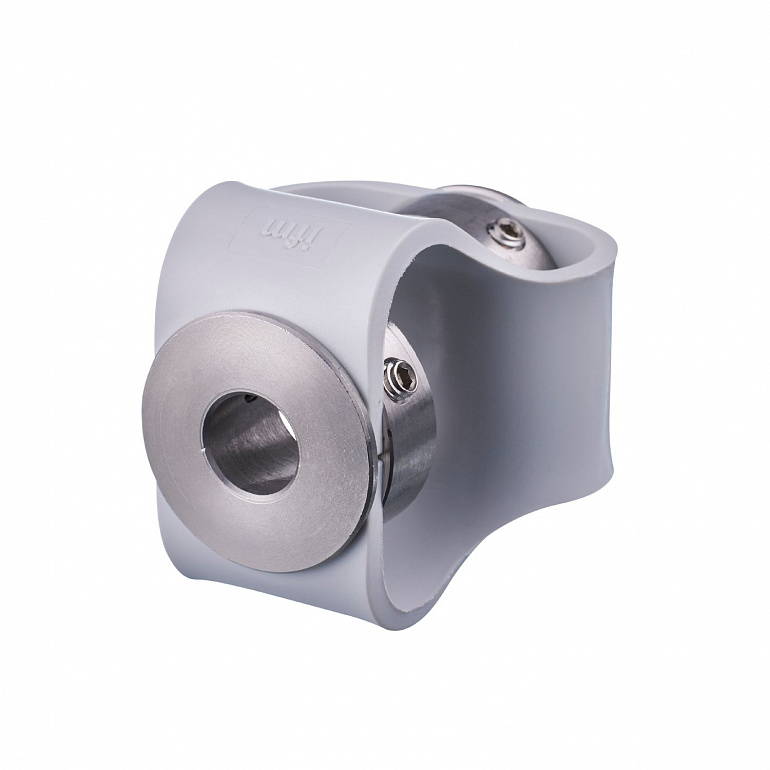

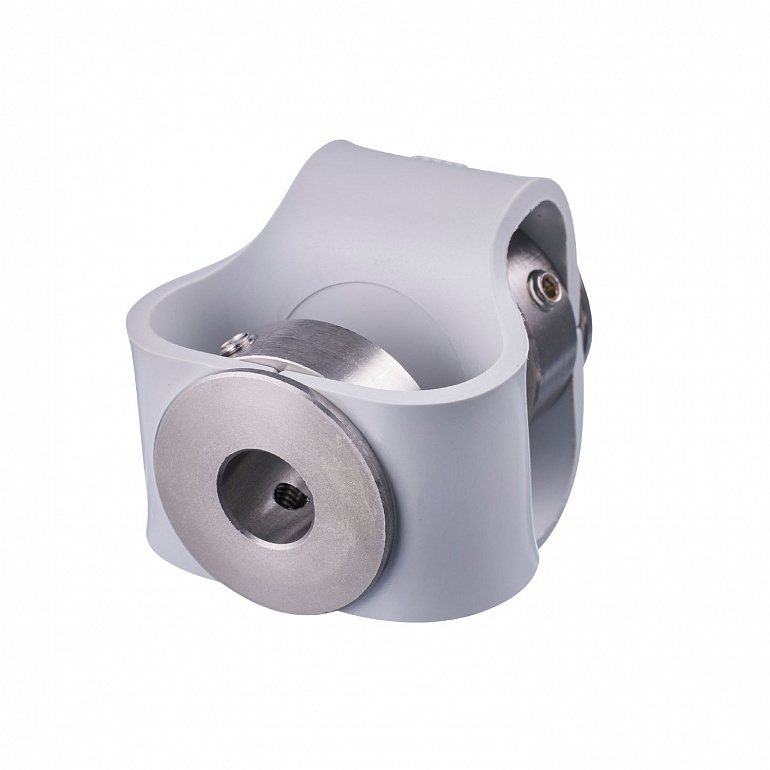

shaft adapter: stainless steel (1.4305 / 303); double-loop coupling: PU |
| Tightening torque |
tightening torque screws: 100 Ncm |
| External diameter D |
48 |
| Inside diameter 1 |
10 |
| Inside diameter 2 |
10 |
| Clamping screw |
M4 x 6 - ISO 4029 A2 (4x) |
| Length |
46 |
| Max. revolution, mechanical |
3000 |
| Max. axial shaft misalignment |
± 4 |
| Max. radial shaft misalignment |
± 3 |
| Max. angular displacement |
± 12 |
| Rigidity of the torsion spring |
28 |
| Remarks |
| The data indicated apply to couplings with the above hub borings at an ambient temperature of 23 °C. | | The values of radial, angular and axial displacement are maximum values which must not reach their maximum simultaneously while in operation. |
|
| Pack quantity |
1 pcs. |
