| Shaft design |
solid shaft |
| Shaft diameter |
6 |
| Design |

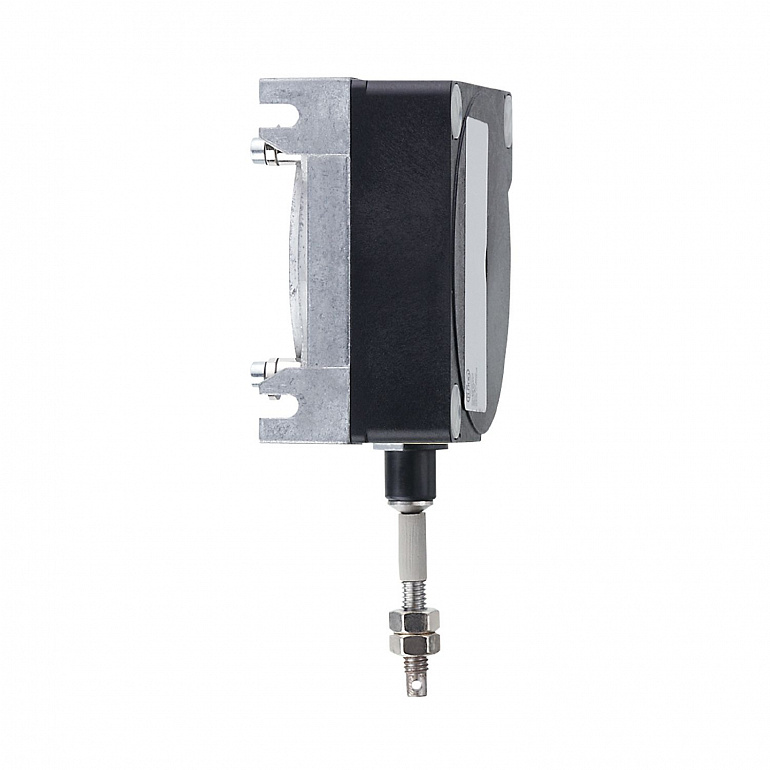

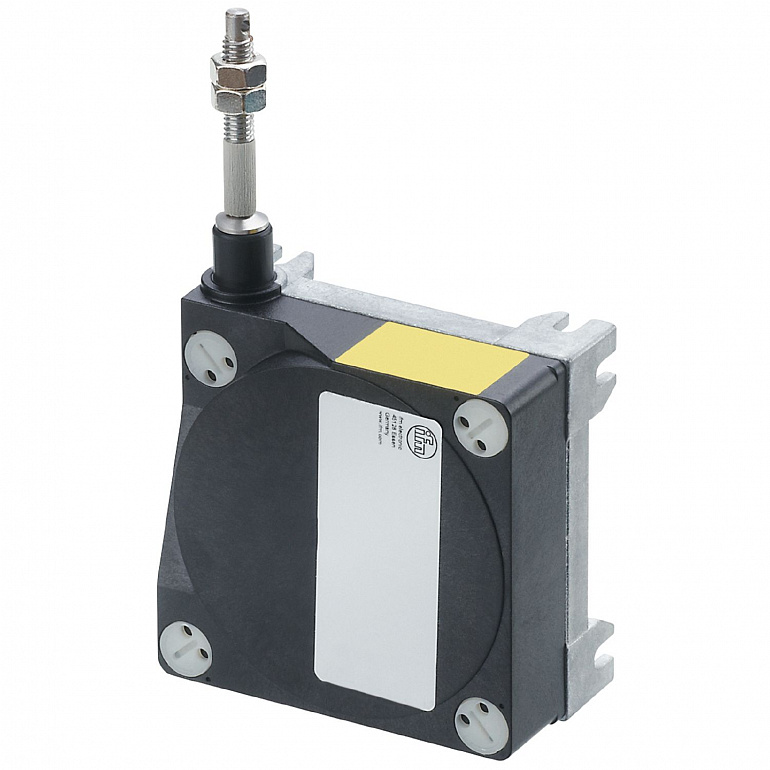

for encoders with 58 mm synchro flange and 6 mm solid shaft |
| Accuracy |
± 0.012 % FSO |
| Repeatability |
± 0,005 % FSO |
| Ambient temperature |
-40...80 |
| Storage temperature |
-40...80 |
| Storage humidity |
5...95; (non condensing) |
| Weight |
598.5 |
| Top flange diameter |
58 |
| Material |
housing: diecast zinc / plastic; wire: stainless steel polyamide coated |
| Shaft design |
solid shaft |
| Shaft diameter |
6 |
| Max. measuring length |
3000 |
| Wire drum circumference |
200 |
| Wire diameter |
0.87 |
| Wire connection |
M6 |
| Wire properties |
| max. speed of wire displacement | [m /s] | 0,8 | | max. wire acceleration | [g] | 1 | | max. extension force | [N] | 3 | | min. retraction force | [N] | 2,5 |
|

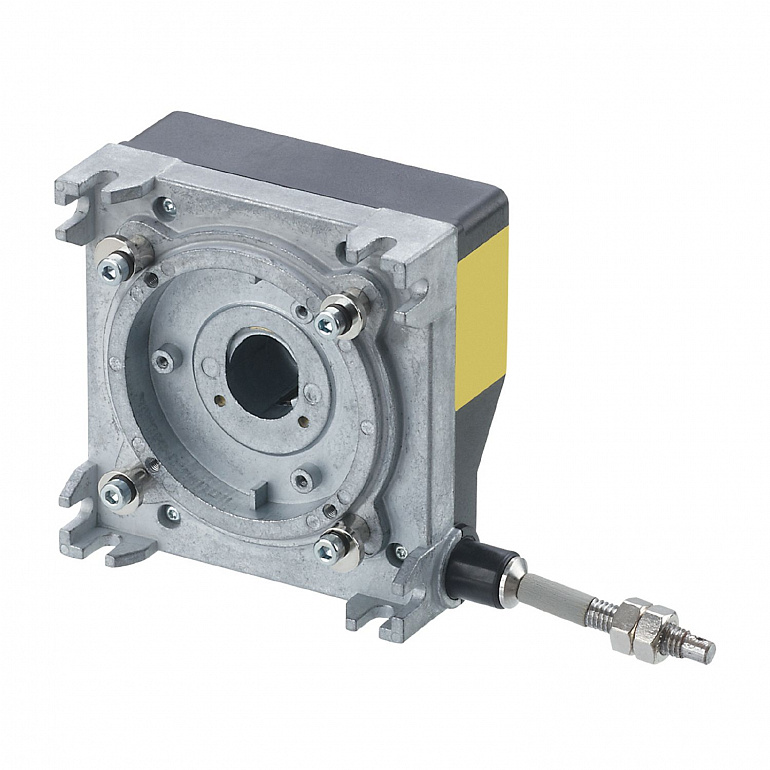

| Fixing flange |
Synchro-flange |
| Pack quantity |
1 pcs. |
