| Shaft design |
solid shaft |
| Shaft diameter |
6 |
| Design |

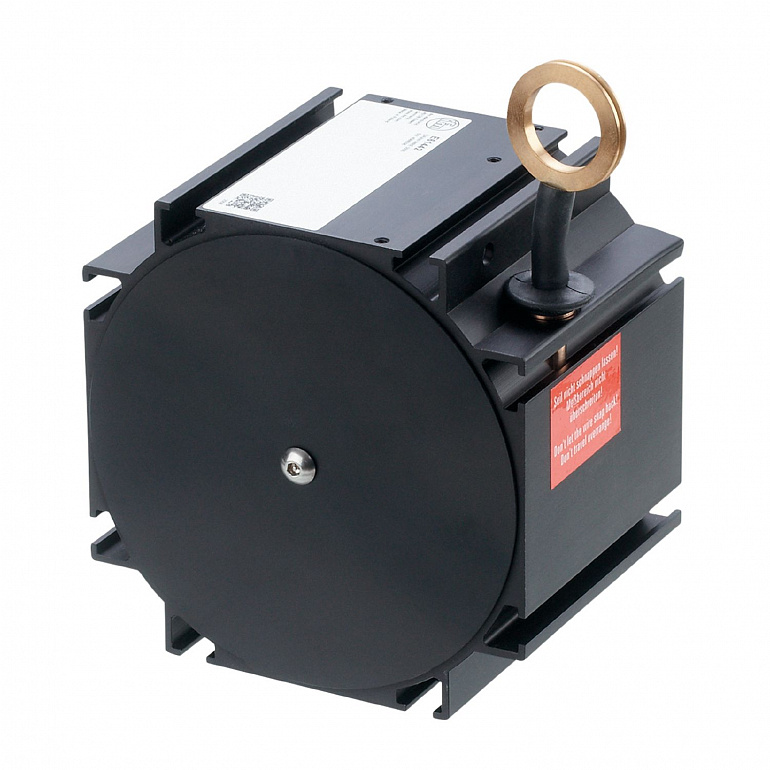

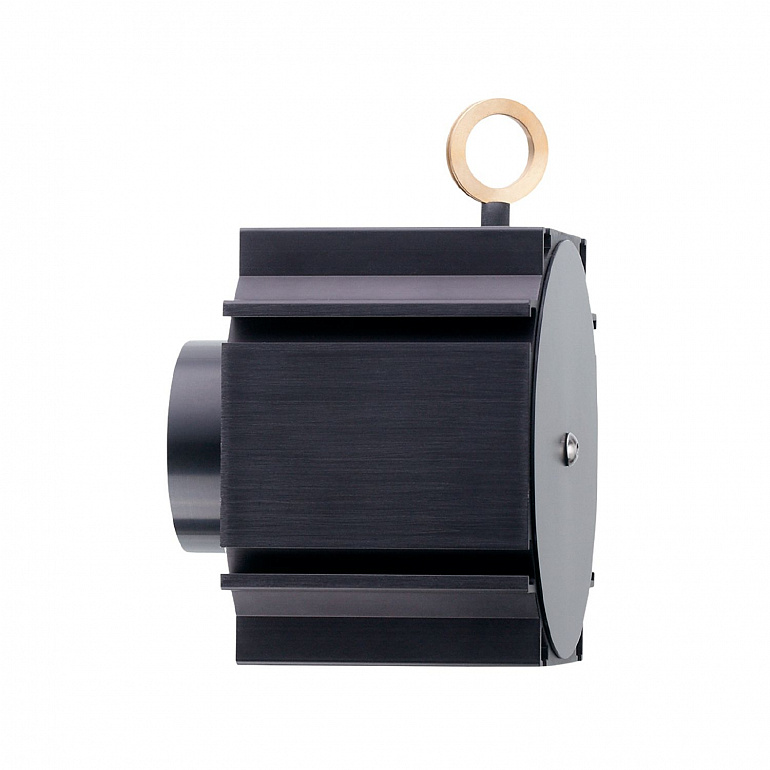

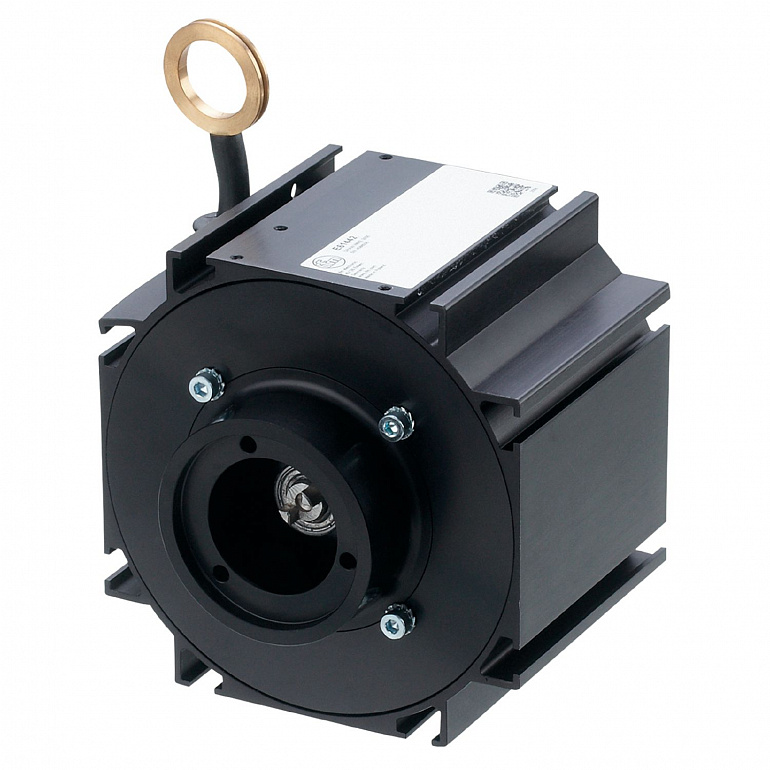

for encoders with 58 mm synchro flange and 6 mm solid shaft |
| Accuracy |
± 0.02 % FSO |
| Repeatability |
± 0,002 % FSO |
| Ambient temperature |
-20...80 |
| Storage temperature |
-40...80 |
| Storage humidity |
5...95; (non condensing) |
| Shock resistance |
|
| Vibration resistance |
| IEC68-2-6 | 20 g / 20..200 Hz |
|
| Weight |
1842.9 |
| Top flange diameter |
58 |
| Material |
housing: aluminum anodized; wire: stainless steel polyamide coated |
| Shaft design |
solid shaft |
| Shaft diameter |
6 |
| Max. measuring length |
5000 |
| Wire drum circumference |
315 |
| Wire diameter |
1 |
| Wire connection |
20,2; (eyelet) |
| Wire properties |
| max. speed of wire displacement | [m /s] | 2 | | max. wire acceleration | [g] | 5 | | max. extension force | [N] | 16 | | min. retraction force | [N] | 4 |
|
| Fixing flange |
Synchro-flange |
| Pack quantity |
1 pcs. |
