Характеристики
| Design | for encoder with clamp flange |
| Material | aluminum anodized; Spring: stainless steel (1.4310 / 301) |

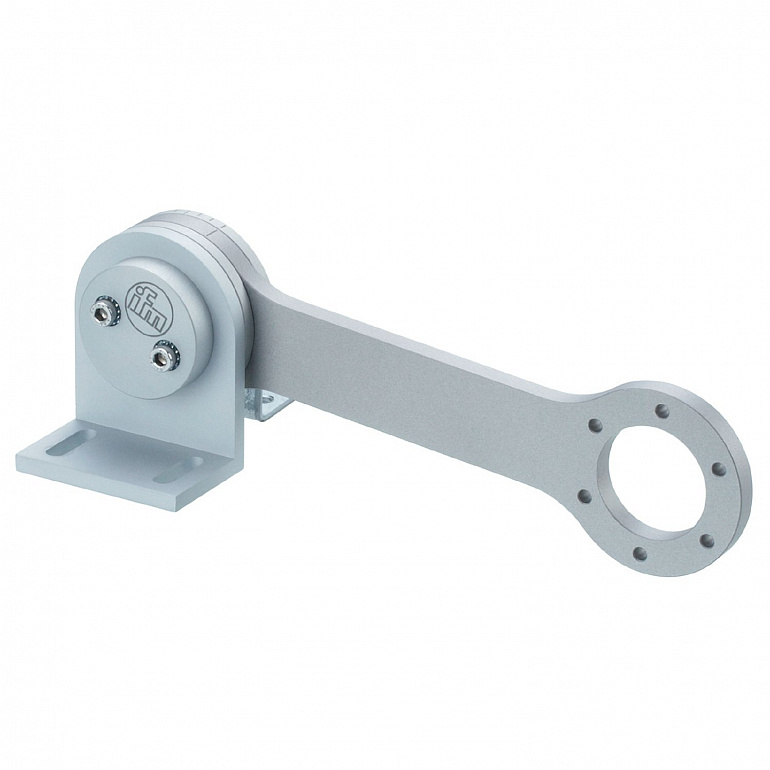

| Product designation | spring arm for encoders |
Все характеристики
| Design | for encoder with clamp flange | |
| Ambient temperature | -30...60 | |
| Weight | 717.1 | |
| Installation instruction | can be mounted from both sides | |
| Dimensions | 230 x 65.9 x 75 | |
| Outer diameter | 340 | |
| Material | aluminum anodized; Spring: stainless steel (1.4310 / 301) | |
| Tightening torque | 4.3 | |
| Max. angular displacement | 45 | |
| Activation force | 5...20 | |
| Remarks |
|
|
| Pack quantity | 1 pcs. |
Приемущества
| For use of encoders in combination with measuring wheels |
| Continuously adjustable pretension |
| Laser engraved scale as setting aid |
| Modular mounting concept |
| Allows for damping direction change for upward or downward motions |
