| Type of light |
Infrared light |
| Design |

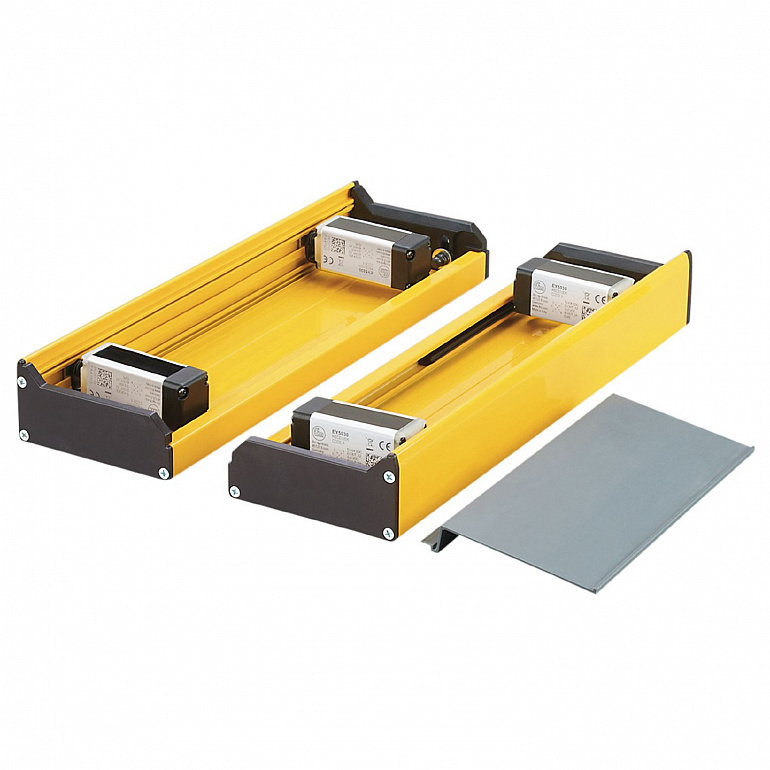

sequential muting with four parallel multi-beam light barriers |
| Function principle |
Through-beam sensor |
| Operating voltage |
19.2...28.8 DC |
| Current consumption |
60 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Type of light |
Infrared light |
| Wave length |
940 |
| Electrical design |
PNP |
| Output function |
dark-on mode |
| Max. voltage drop switching output DC |
0.5 |
| Permanent current rating of switching output DC |
100 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Range |
< 3.5 |
| Ambient temperature |
-30...55 |
| Protection |
IP 65 |
| EMC |
|
| Weight |
4295 |
| Material |
aluminum; polypropylene |
| Lens material |
|
| Display |
| transmitter | LED, yellow | | receiver | LED, green/red |
|
| Pack quantity |
4 pcs. |
| Connection |
Connector: 1 x M12; coding: A; Moulded body: blue |
| Connection |
Connector: 1 x M12; coding: A; Moulded body: red |
| Connection |
Connector: 1 x M12; coding: A; Moulded body: blue |
| Connection |
Connector: 1 x M12; coding: A; Moulded body: red |
