Характеристики
| Material | Adapter: PVDF; Gasket: EPDM |

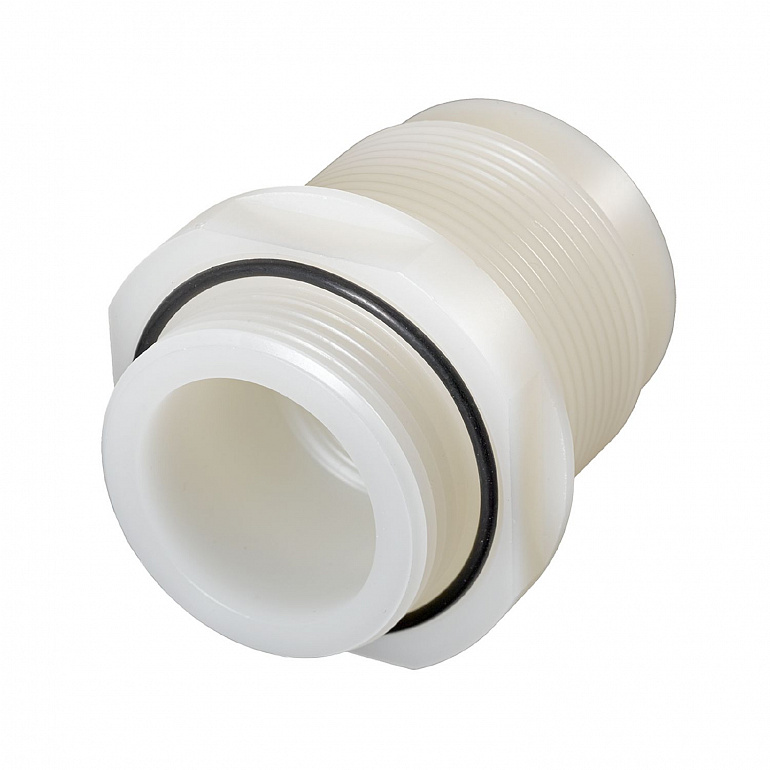

| Product designation | Mounting adapter |
Все характеристики
| Pressure rating |
|
||
| Ambient temperature | -25...110 | ||
| Weight | 113 | ||
| Dimensions | G 1 1/2 / L = 65 | ||
| Thread designation | G 1 1/2 | ||
| Material | Adapter: PVDF; Gasket: EPDM | ||
| Sensor connection | threaded connection M30 x 1,5 Internal thread | ||
| Process connection | threaded connection G 1 1/2 external thread | ||
| Pack quantity | 1 pcs. |
Приемущества
| Reliable installation in a vessel wall |
| Efficient protection against soiling, impact and shock |
| For level detection with capacitive sensors in containers and tanks |
| High pressure resistance |
| Use in high medium temperatures |
