| Housing |
rectangular |
| Dimensions |
78 x 45 x 124.7 |
| Design |
housing for DIN rail mounting |
| Application |

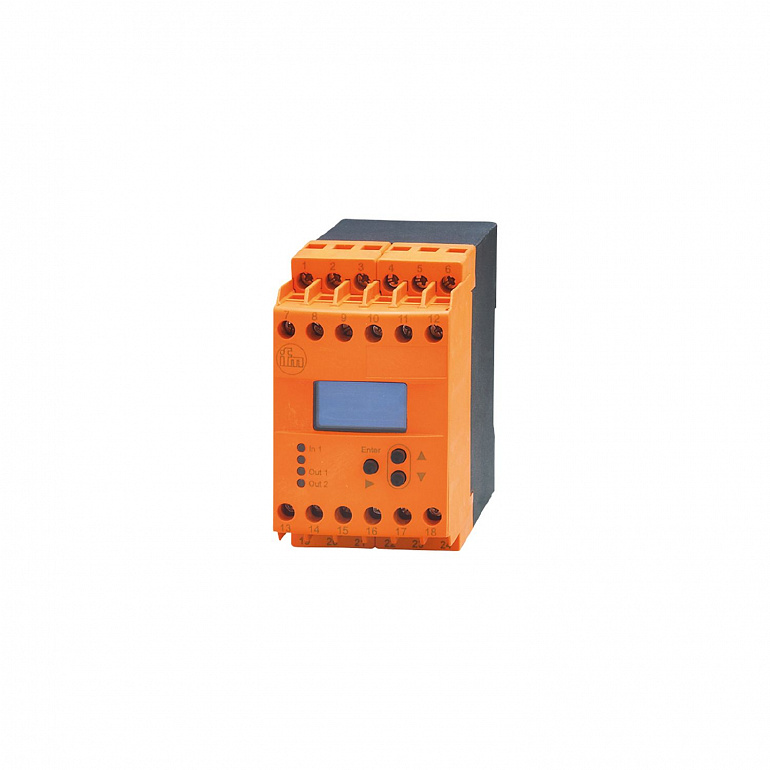

pulse evaluation system with microprocessor for frequency; rotational speed; speed; pulses and machine cycles |
| Nominal voltage AC |
110...240 |
| Nominal voltage DC |
27 |
| Nominal voltage tolerance |
< 10 |
| Nominal voltage tolerance 2 |
20...10 |
| Nominal frequency AC |
50...60 |
| Power consumption |
3 |
| Auxiliary energy for sensors DC |
19.6...27.7; (SELV, ≤ 150 mA) |
| Number of inputs and outputs |
Number of digital outputs: 2; Number of relay outputs: 2 |
| Number of digital outputs |
2 |
| Number of relay outputs |
2 |
| Contact rating |
6 A (250 V AC, 30 V DC); B300, R300; (resistive load) |
| Setting range Hz |
0.1...1000 |
| Setting range |
1...60000 |
| Ambient temperature |
-40...60 |
| Storage temperature |
-40...85 |
| Max. relative air humidity |
80; (40 °C: 50 %) |
| Protection |
IP 50 |
| Protection rating terminals |
IP 20 |
| Degree of soiling |
2 |
| EMC |
| EN 61010 | 2011 | | EMV 89/336/EWG | | | EN 61000-6-2 | 2005 | | EN 61000-6-4 | 2007 |
|
| Weight |
381 |
| Housing |
rectangular |
| Type of mounting |
Mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions |
78 x 45 x 124.7 |
| Material |
housing: plastics |
| Display |
| OLED display, 128 x 64 pixels luminous | | Switching status | LED, green |
|
| Remarks |
| the device complies with overvoltage category II |
|
| Pack quantity |
1 pcs. |
|
dual-chamber terminals: 2 x ...2.5 mm²; AWG 14 |
