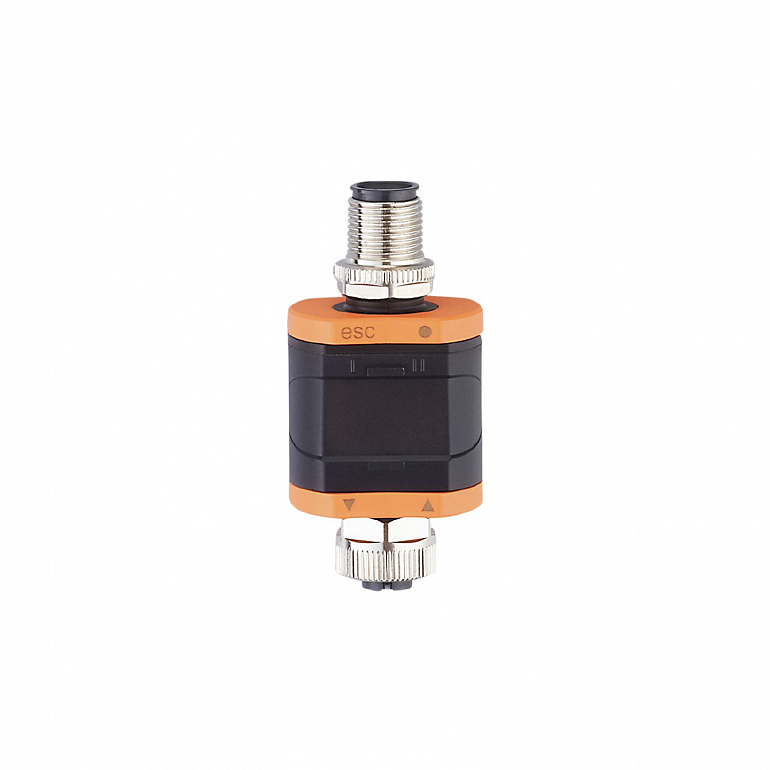

| Application |
decentralized display, preprocessing and conversion of analog signals |
| Operating voltage |
18...30 DC; (to SELV/PELV) |
| Nominal voltage DC |
24 |
| Current consumption |
30...900 |
| Max. current load total |
0.8 |
| Number of inputs and outputs |
Number of analog inputs: 1; Number of digital outputs: 1; Number of analog outputs: 1 |
| Sensor supply of the inputs |
from the operating voltage |
| Number of analog inputs |
1 |
| Analog input (current) |
4...20 |
| Resolution of analog input |
10 Bit |
| Number of digital outputs |
1 |
| Voltage range DC |
10...30 |
| Output function |
normally open / closed; (configurable) |
| Max. current load per output |
50 |
| Number of analog outputs |
1 |
| Analog current output |
4...20 |
| Accuracy |
0.75; (% of the final value of the measuring range analog input) |
| Communication interface |
IO-Link |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| IO-Link Device | 610 |
|
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| Smart Sensor - SSP 0 | Generic Profiled Sensor | | Function | Device identification | | Function | Process data variable | | Function | Device diagnosis |
|
| SIO mode |
yes |
| Required master port class |
A |
| Process data analog |
1 |
| Process data binary |
1 |
| Min. process cycle time |
3.2 |
| Ambient temperature |
-25...60 |
| Storage temperature |
-25...70 |
| Max. relative air humidity |
90; (linearly decreasing to 50 % (40 °C); non condensing) |
| Max. height above sea level |
4000 |
| Protection |
IP 67 |
| Degree of soiling |
2 |
| MTTF |
373 |
| UL approval |
| Ta | max. 55 °C | | File number UL | E205959 |
|
| Weight |
84.4 |
| Housing |
rectangular |
| Dimensions |
63 x 30 x 24 |
| Material |
housing: PA |
| Display |
| Switching status | LED, yellow | | Power | LED, green | | 7-segment LED display, red/green 4-digit configurable | | digit height 6,8 mm | | digit width 3,8 mm |
|
| Accessories (optional) |
|
| Remarks |
| Further information is available in the manual. | | the device complies with overvoltage category II |
|
| Pack quantity |
1 pcs. |
|

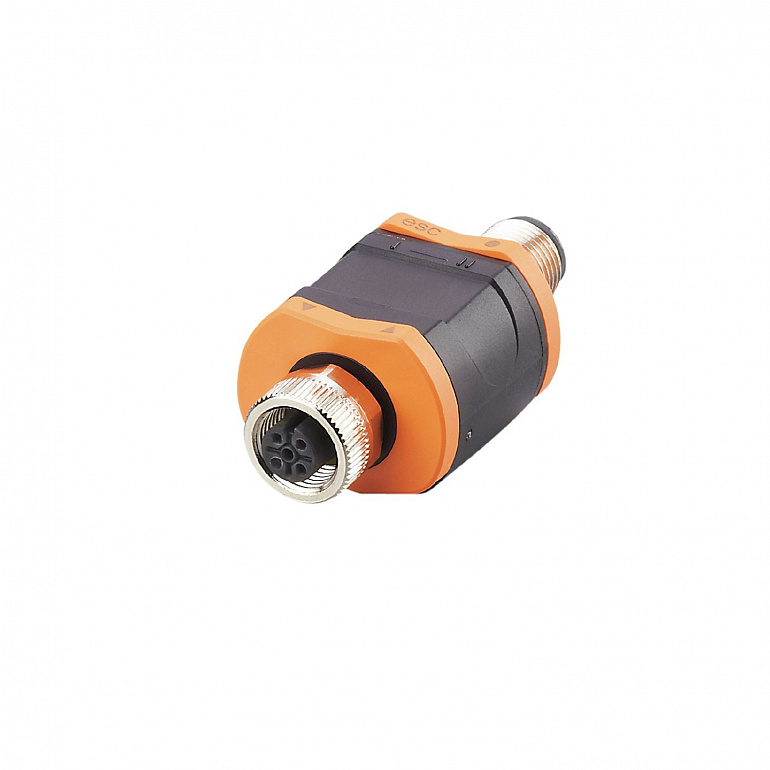

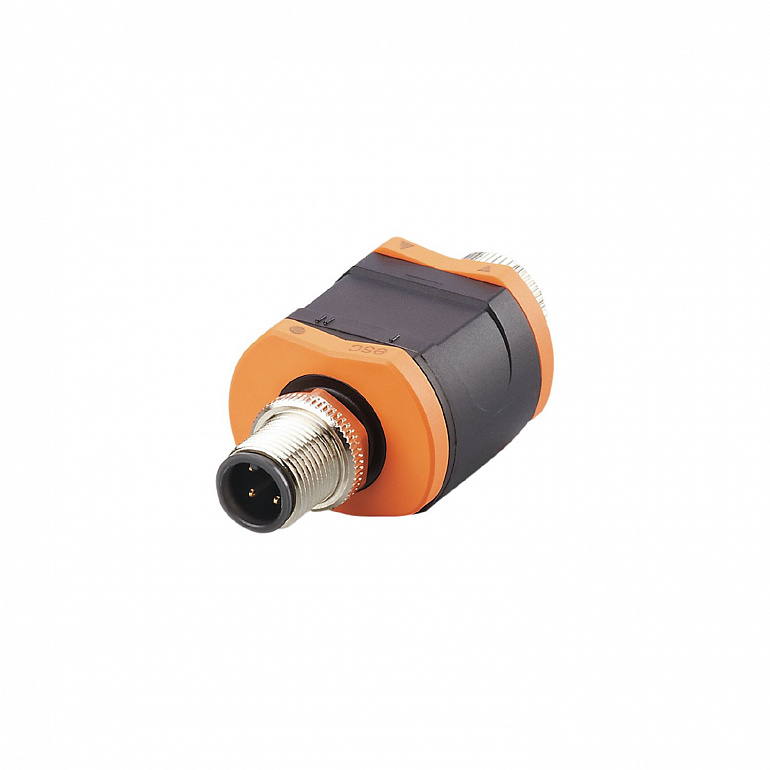

Connector: 1 x M12; coding: A |
|
Connector: 1 x M12; coding: A |
