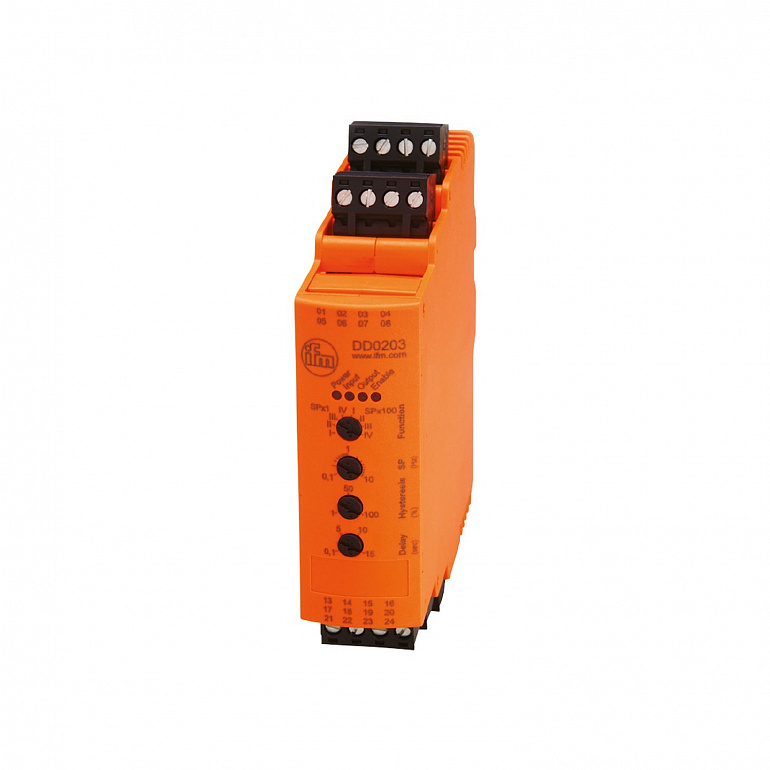

| Housing |
rectangular |
| Dimensions |
93 x 25.4 x 109.1 |
| Design |
housing for DIN rail mounting |
| Application |
universal evaluation of pulse sequences with regard to overspeed and underspeed; Rotational speed monitoring |
| Operating voltage tolerance 2 |
> 20 |
| Nominal voltage AC |
110...240 |
| Nominal voltage DC |
27 |
| Nominal voltage tolerance |
> 20 |
| Nominal voltage tolerance 2 |
20...10 |
| Nominal frequency AC |
50...60 |
| Insulation rating |
9 |
| Max. power consumption AC |
6 |
| Max. power consumption DC |
4 |
| Auxiliary energy for sensors DC |
18.5...30; (SELV, ≤ 100 mA) |
| Number of inputs and outputs |
Number of digital outputs: 1; Number of relay outputs: 1 |
| Number of digital outputs |
1 |
| Number of relay outputs |
1 |
| Contact rating |
4 A (240 V AC); 6 A (30 V DC); (resistive load) |
| Short-circuit proof |
yes |
| Setting range Hz |
0.1...1000 |
| Hysteresis |
1...100 |
| Start-up delay |
0.1...15 |
| Adjustment of the switch point |
potentiometer |
| Ambient temperature |
-25...60 |
| Storage temperature |
-25...70 |
| Max. relative air humidity |
80; (40 °C: 50 % non condensing) |
| Max. height above sea level |
2000 |
| Protection |
IP 20 |
| Protection rating terminals |
IP 20 |
| Degree of soiling |
2; (≤ 240 V AC) |
| Approval |
UL: N001 |
| MTTF |
212 |
| Weight |
242 |
| Housing |
rectangular |
| Type of mounting |
Mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions |
93 x 25.4 x 109.1 |
| Material |
housing: PC-GF20 |
| Display |
| voltage supply | 1 x LED, green | | input signal | 1 x LED, yellow | | Output | 1 x LED, green | | Enable signal | 1 x LED, yellow |
|
| Items supplied |
| connector: 5 x 4-wire, with screw connection, E40173 |
|
| Pack quantity |
1 pcs. |
| Connection |
pin headers: 4 x ; Spacing: 5.0 mm |
