| Number of inputs and outputs |
Number of analog inputs: 2 |
| Communication interface |
IO-Link |
| Application |
converter from analog voltage signals to IO-Link; for connecting analog sensors to an IO-Link system; for use in wet environments; indoor use |
| Operating voltage |
18...30 DC; ((in wet environments: 18...28 V) to SELV/PELV) |
| Nominal voltage DC |
24 |
| Current consumption |
300 |
| Number of inputs and outputs |
Number of analog inputs: 2 |
| Max. total current rating of inputs |
200 |
| Number of analog inputs |
2 |
| Analog input (voltage) |
0...10 |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| Common - I&D | Identification and Diagnosis |
|
| SIO mode |
no |
| Required master port class |
A/B |
| Process data analog |
2 |
| Min. process cycle time |
4.3 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| STATUS_B / CMPT = 2 (Factory setting) | 1428 |
|
| Profiles |
| Common - I&D | Identification and Diagnosis | | Function | Multiple switching signal | | Function | Adjustable switching signal |
|
| Min. process cycle time |
4.6 |
| Ambient temperature |
-25...70 |
| Note on ambient temperature |
| 2000 m: -25...70 °C | | 3000 m: -25...64 °C | | 4000 m: -25...62 °C |
|
| Storage temperature |
-25...70 |
| Max. relative air humidity |
90; (linearly decreasing to 50 % (40 °C) non condensing) |
| Max. height above sea level |
4000 |
| Protection |
IP 67; IP 69K |
| Degree of soiling |
2 |
| Chemical media |
| DIN EN ISO 175, Ecolab test method 40-1 | | | the following media were tested for 28 days at constant room temperature using the dipping test method | P3-topax 66 | | P3-topax 990 | | Topactive 200 | | Topactive 500 | | Topactive OKTO |
|
| MTTF |
504 |
| UL approval |
| Ta | max. 55 °C | | File number UL | E205959 |
|
| Weight |
78.6 |
| Weight (without accessories and packaging) |
27 |
| Housing |
rectangular |
| Dimensions |
63 x 30 x 24.5 |
| Material |
housing: PA |
| Material nut |
stainless steel (1.4404 / 316L) |
| Sealing material |
FKM |
| Display |
| Power | 1 x LED, green | | analog input | 2 x LED, yellow |
|
| Remarks |
| Further information is available in the manual. | | the device complies with overvoltage category II |
|
| Pack quantity |
1 pcs. |
|

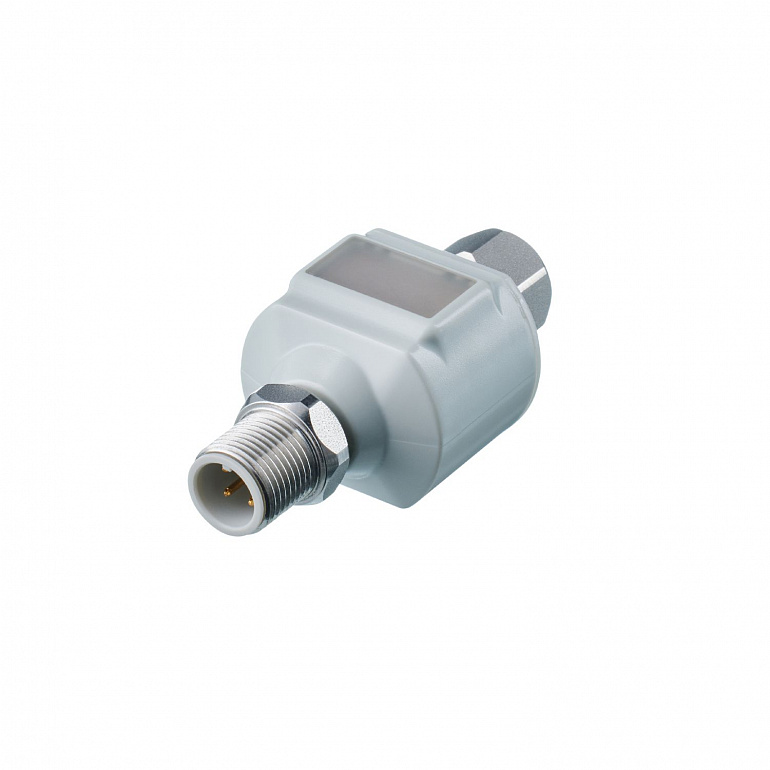

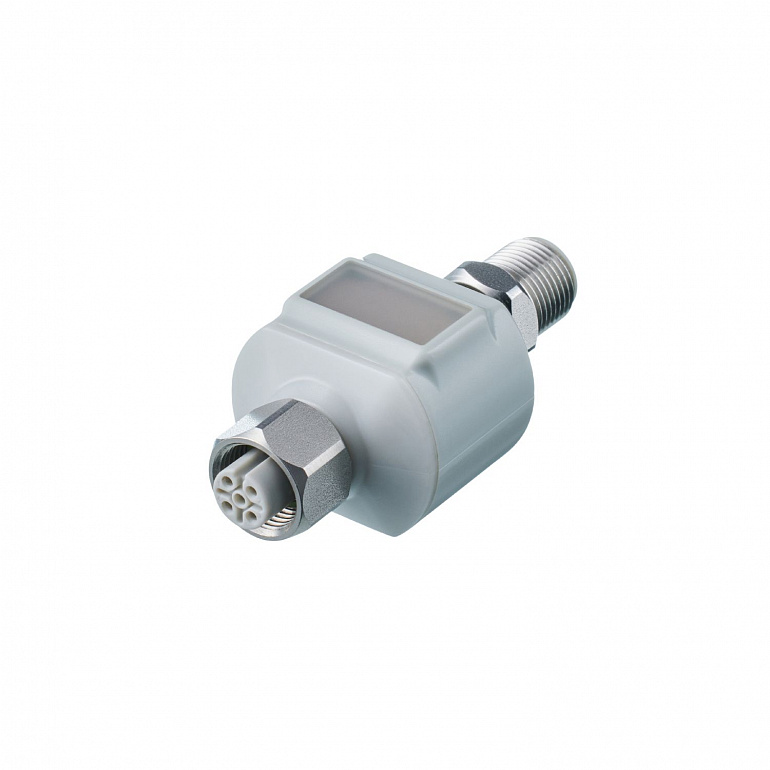

Connector: 1 x M12, straight; coding: A; Locking: stainless steel (1.4404 / 316L); sealing: FKM |
|
Connector: 1 x M12, straight; coding: A; Locking: stainless steel (1.4404 / 316L) |
