| Communication interface |
IO-Link |
| Housing |
rectangular |
| Dimensions |
126 x 50 x 112.4 |
| Design |
housing for DIN rail mounting |
| Application |

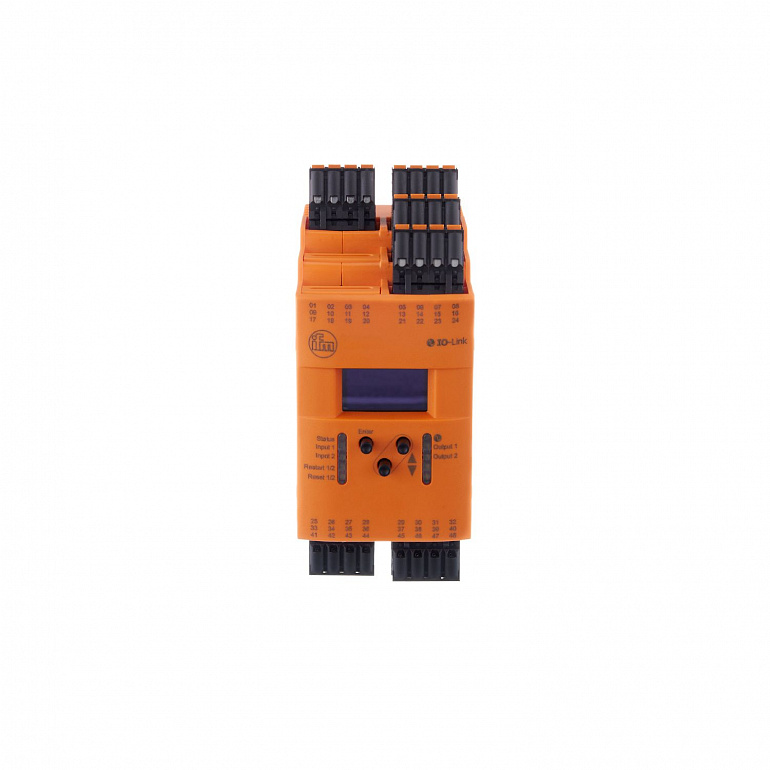

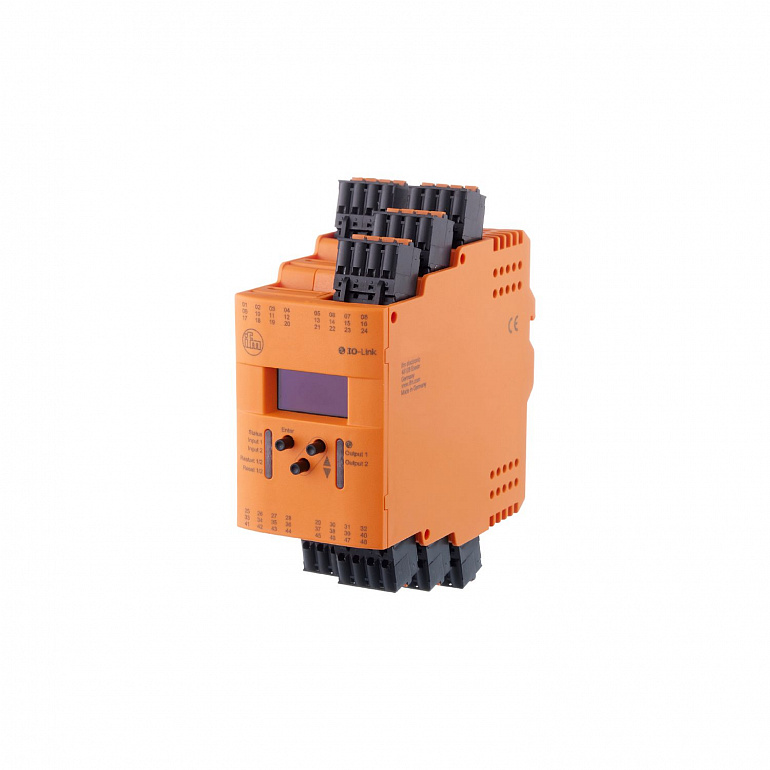

2-channel analog threshold relay for analog standard signals |
| Operating voltage |
18...30 DC |
| Nominal voltage AC |
110...240 |
| Nominal voltage DC |
24 |
| Nominal frequency AC |
50...60 |
| Max. power consumption |
11 |
| Auxiliary energy for sensors DC |
16.5...27.7; (SELV; DC operation: ≤ 200 mA; AC operation: ≤ 150 mA) |
| Number of inputs and outputs |
Number of analog inputs: 2; Number of digital outputs: 2; Number of analog outputs: 1; Number of relay outputs: 2 |
| Number of analog inputs |
2; (configurable) |
| Analog input (current) |
0...20 |
| Input resistance |
25 |
| Analog input (voltage) |
0...10 |
| Resolution of analog input |
12 Bit |
| Number of digital outputs |
2 |
| Circuit |
PNP |
| Number of relay outputs |
2; (changeover contact) |
| Contact rating |
6 A (250 V AC); B300, R300 |
| Number of analog outputs |
1 |
| Analog current output |
4...20; (max.. 20,5 mA) |
| Max. load |
600; (300 Ω: Operating voltage < 24 V DC) |
| Short-circuit proof |
yes |
| Electrically separated |
no |
| Accuracy |
± 0.25; (% of the final value < 45 °C; > 45 °C 0.25 % + Temperature coefficient) |
| Temperature coefficient |
± 0,1; (> 45 °C) |
| Accuracy |
± 0.75; (% of the final value < 45 °C; including analog input accuracy) |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| Smart Sensor - SSP 4.1.2 | Measuring and Switching Sensor, 2 channel | | Common - I&D | Identification and Diagnosis | | Extension | Sensor control | | Extension | Quantity detection, switches when value exceeds the setpoint | | Function | Locator | | Function | ProductURI |
|
| Required master port class |
A |
| Min. process cycle time |
4.9 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 1583 |
|
| Ambient temperature |
-40...60 |
| Note on ambient temperature |
| 110V AC operation: -25...60 °C |
|
| Storage temperature |
-40...85 |
| Max. relative air humidity |
80; (31 °C; linearly decreasing to 50 % (40 °C)) |
| Max. height above sea level |
4000 |
| Protection |
IP 20 |
| Protection rating terminals |
IP 20 |
| EMC |
| EN 61010 | | | EN 61000-6-2 | | | EN 61000-6-8 | |
|
| MTTF |
150 |
| Weight |
338.6 |
| Housing |
rectangular |
| Type of mounting |
Mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions |
126 x 50 x 112.4 |
| Material |
housing: plastics |
| Display |
| 1x OLED display, 128 x 64 pixels luminous | | Switching status | 2x LED, yellow | | Power | 1x LED, green/red |
|
| Teach function |
yes |
| Items supplied |
|
| Pack quantity |
1 pcs. |
| Connection |
cage clamps: ...2.5 mm² |
