| System |
gold-plated contacts |
| Application |

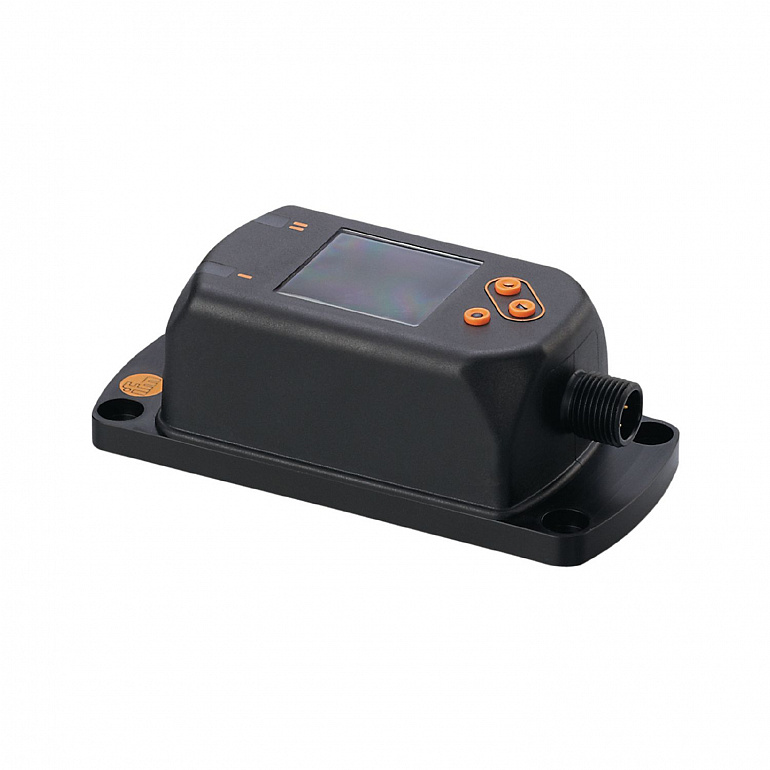

display for freely definable process values, texts and messages assigned from the controller |
| Operating voltage |
18...30 DC |
| Current consumption |
< 47 |
| Min. insulation resistance |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Parameter setting options |
display, indication (figure, text, QR code) |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| Smart Sensor - SSP 0 | Generic Profiled Sensor | | Function | Device identification | | Function | Process data variable | | Function | Device diagnosis |
|
| SIO mode |
no |
| Required master port class |
A |
| Process data binary |
6 |
| Min. process cycle time |
8.4 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 681 |
|
| Ambient temperature |
-10...60 |
| Storage temperature |
-20...80 |
| Protection |
IP 65; IP 67 |
| EMC |
| DIN EN 61000-6-2 | | | DIN EN 61000-6-4 | |
|
| Shock resistance |
| DIN EN 60068-2-27 | 20 g (11 ms) |
|
| Vibration resistance |
| DIN EN 60068-2-6 | 20 g (10...50 Hz) |
|
| MTTF |
5.63 |
| Weight |
174 |
| Housing |
rectangular |
| Dimensions |
86 x 45 x 39.5 |
| Material |
stainless steel (1.4404 / 316L); PC; PBT-GF30; PPS; FKM; PA 6.6-GF30 |
| Display |
| Color display 1,44", 128 x 128 pixels | | 2 x LED, yellow |
|
| Pack quantity |
1 pcs. |
|
Connector: 1 x M12; Contacts: gold-plated |
