Характеристики
| Number of cores | 5 |
| Cable structure | 4 x 0,25 mm² / 1 x 0,5 mm² |
| Connection | 0.5 m PVC-Cable; M12 Connector |

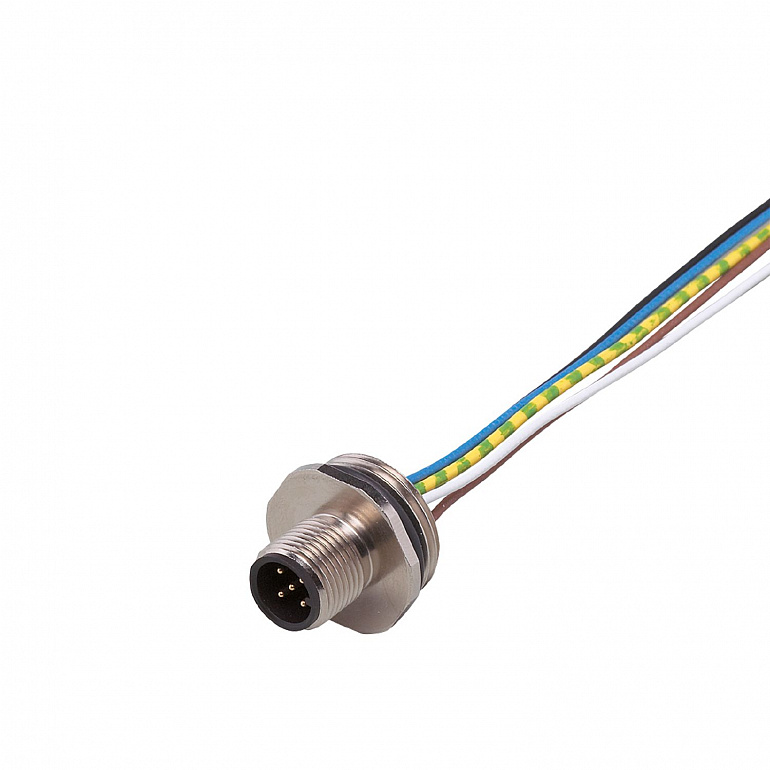

| Product designation | Male receptacle |
Все характеристики
| Operating voltage | < 125 AC/DC |
| Ambient temperature | -25...85 |
| Protection | IP 68 |
| Weight | 27.3 |
| Dimensions | 18 x 18 x 19 |
| Mounting thread | M20 |
| Material | housing: brass nickel-plated |
| Pack quantity | 1 pcs. |
| Cable: 0.5 m, PVC; 4 x 0.25 mm² + 1 x 0.5 mm² | |
| Connection | Connector: 1 x M12, straight; coding: A; Tightening torque: ...0.6 Nm; thread M20 Tightening torque: ...2 Nm |
Приемущества
| User-friendly equipment of distributors and housings with connections for connectors |
| Easy and quick installation into the container wall |
| Robust metal version |
| High protection rating for the requirements of harsh industrial environments |
| Wide operating temperature range |
