Характеристики
| Number of cores | 5 |
| Cable structure | 5 x 0,25 mm² |
| Connection | 1.5 m PVC-Cable; M12 / Typ A Connector |

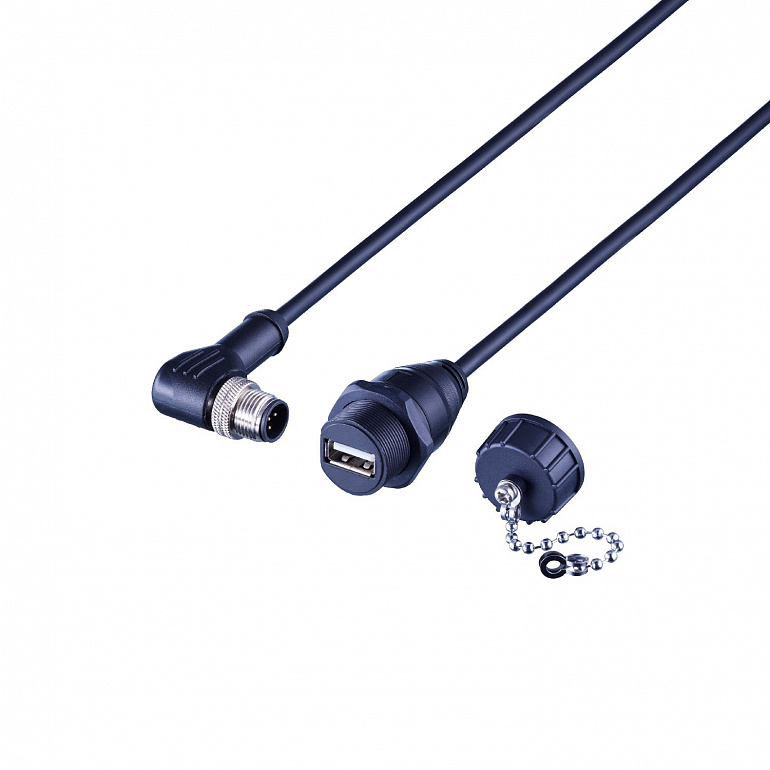

| Product designation | Connection cable |
Все характеристики
| System | screened cable | |
| Design | for process and dialog modules PDM360 NG | |
| Application | USB socket for installation in control panel or dashboard | |
| Protection | IP 67 | |
| Weight | 97.8 | |
| Items supplied |
|
|
| Pack quantity | 1 pcs. | |
| Connector: 1 x M12, angled; coding: B | ||
| Connection | Cable: 1.5 m, PVC, black, Ø 5 mm, screened; twisted; 5 x 0.25 mm² / AWG 24 | |
| Connector: 1 x Typ A, straight |
Приемущества
| Reliable connection of displays and dialog modules |
| With USB socket for installation in control panel or dashboard |
| For use in mobile machines and vehicles |
| Protective cap for USB socket with high protection rating |
| Suited for control cabinet installation in industrial applications |
