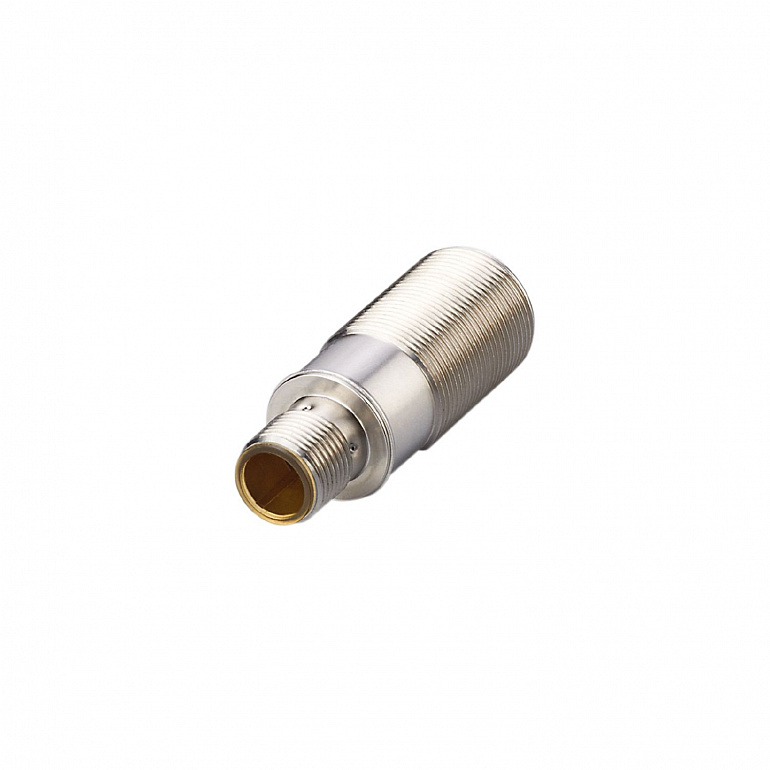

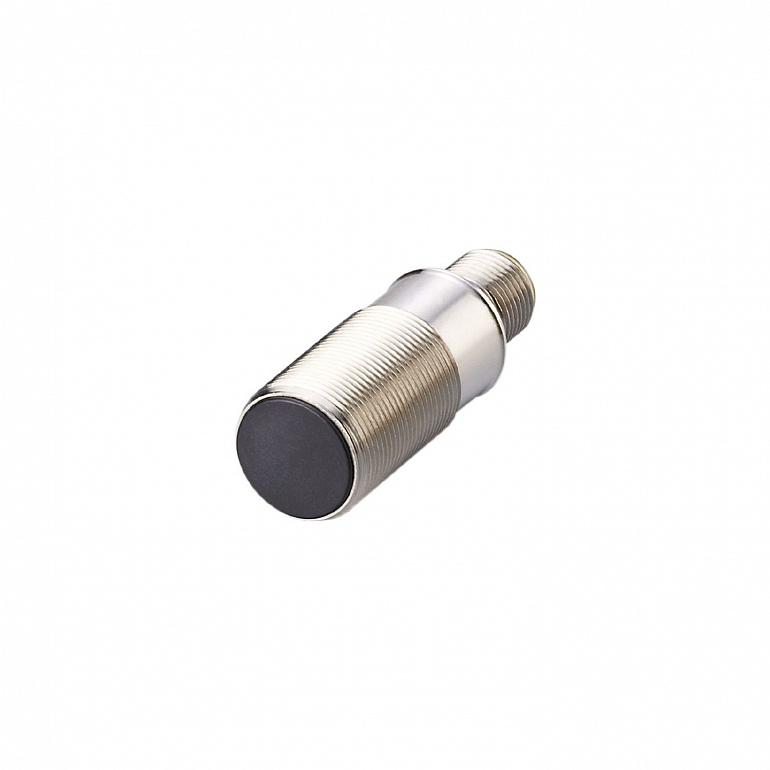

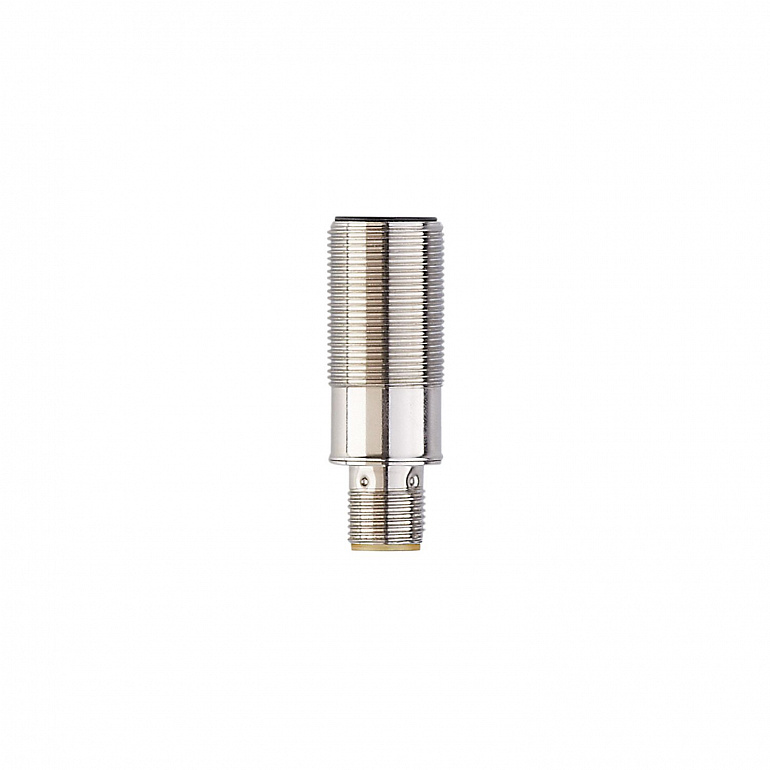

| Application |
|
| Application |
Detection of objects on transport equipment |
| Radio approval for |
USA; Canada; EU/RED; Australia; Japan; China; Taiwan; India; Singapore; Brazil; Mexico; Malaysia; New Zealand; South Korea |
| Note on radio approval |
<table><tr><td>The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”. </td></tr></table> |
| Electrical data |
|
| Operating voltage |
19.2...28.8 DC |
| Current consumption |
< 50 |
| Protection class |
III |
| Operating frequency |
13,56 |
| RFID standard |
ISO 15693 |
| Monitoring range |
|
| Distance write/read head front |
100 |
| Distance write/read head side |
60 |
| Distance to the ID tag |
<table><tr><td>referred to 30 mm coin tag; I-CODE SLI</td><td>:</td><td>≤ 16</td></tr></table> |
| Interfaces |
|
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
<table><tr><td>Smart Sensor - SSP 0</td><td>Generic Profiled Sensor</td></tr><tr><td>Function</td><td>Device identification</td></tr></table> |
| SIO mode |
no |
| Required master port class |
A |
| Min. process cycle time |
22 |
| Supported DeviceIDs |
<table><tr><th>Type of operation</th><th>DeviceID</th></tr><tr><td>default</td><td>967</td></tr></table> |
| Operating conditions |
|
| Ambient temperature |
-20...60 |
| Storage temperature |
-25...80 |
| Protection |
IP 67; IP 69K |
| Tests / approvals |
|
| Shock resistance |
<table><tr><td>EN 60068-2-27</td><td>40 g 6 ms / repetitive</td></tr><tr><td>EN 60068-2-27</td><td>50 g 11 ms / not repetitive</td></tr></table> |
| Vibration resistance |
<table><tr><td>EN 60068-2-6</td><td>20 g 10...2000 Hz</td></tr></table> |
| MTTF |
556 |
| UL approval |
<table><tr><td>Ta</td><td>-20...60 °C</td></tr><tr><td>Enclosure type</td><td>Type 1 </td></tr><tr><td>voltage supply</td><td>Limited Voltage/Current </td></tr><tr><td>File number UL</td><td>E205959 </td></tr></table> |
| Mechanical data |
|
| Weight |
110.3 |
| Housing |
Threaded type |
| Mounting |
flush mountable |
| Dimensions |
M18 x 1 / L = 50 |
| Thread designation |
M18 x 1 |
| Material |
housing: stainless steel; Protective cover: PPS; LED window: PEI |
| Displays / operating elements |
|
| Display |
<table><tr><td>Power</td><td>1 x LED, green</td></tr><tr><td>tag communication</td><td>1 x LED, yellow</td></tr></table> |
| Accessories |
|
| Items supplied |
<table><tr><td>lock nuts: 2 x M18</td></tr></table> |
| Remarks |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
|
| Connection |
Connector: 1 x M12; coding: A |
