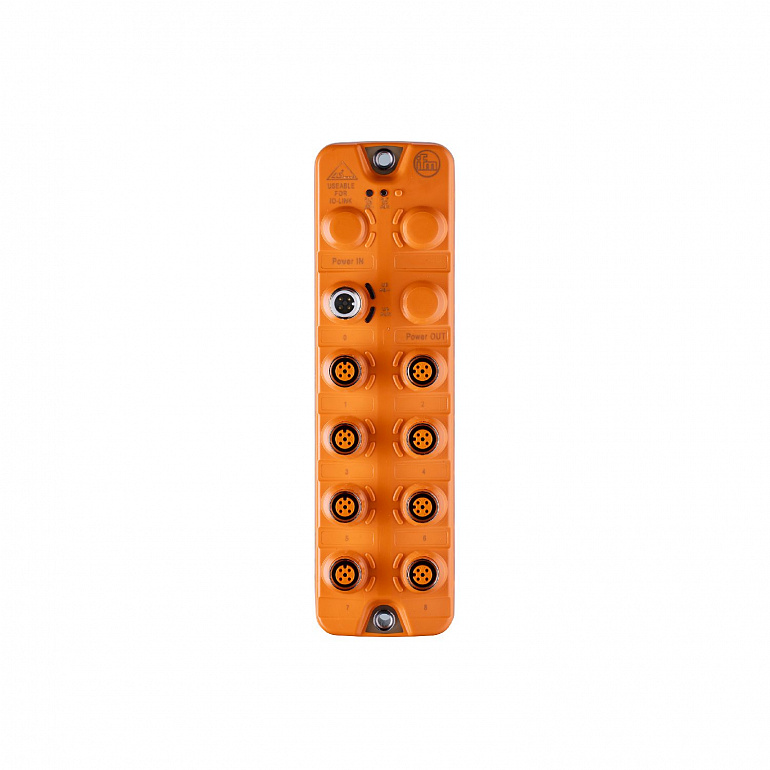

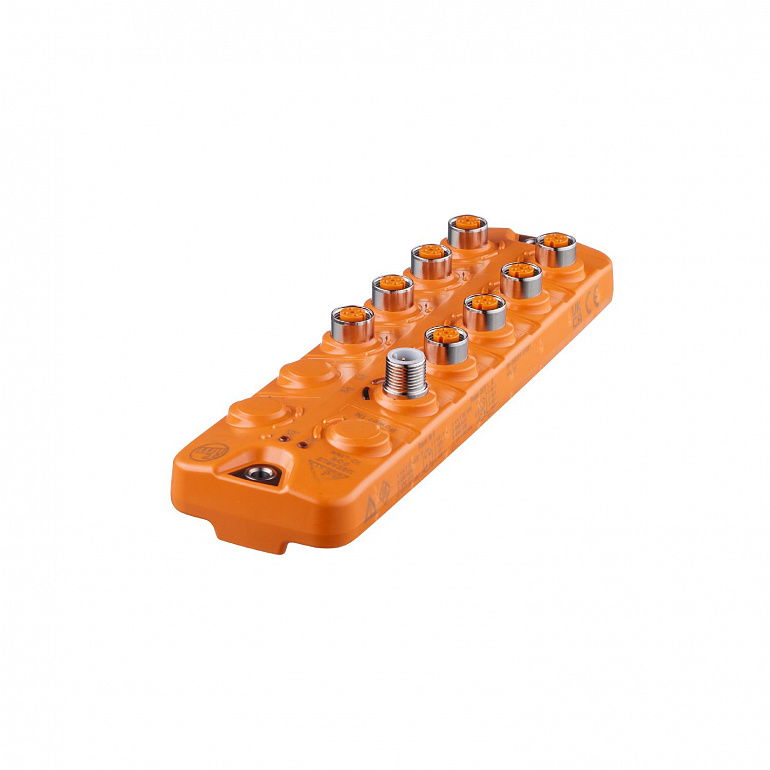

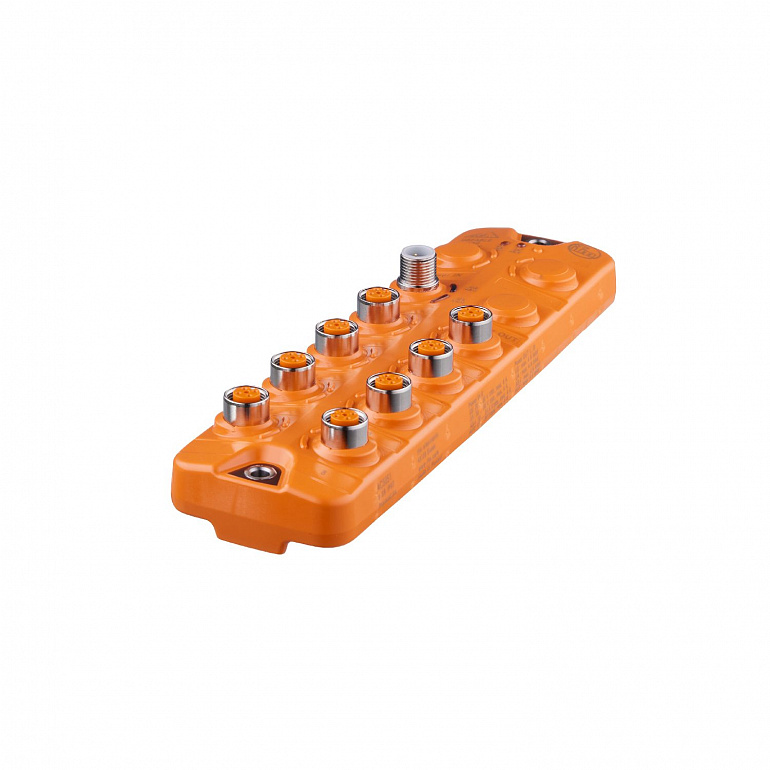

| Design |
AS-i oder IO-Link Spannungsverteiler |
| Application |
field installation |
| Protection class |
III |
| Overcurrent detection |
yes; (4400 mA ± 200 mA) |
| Operating voltage |
18...31.6 DC; (AS_i) |
| Current consumption |
4000; (AS-i) |
| Additional voltage supply |
15...30 DC; (AUX) |
| Max. current consumption from additional supply |
4000; (AUX) |
| Operating voltage |
20...30 DC; (US) |
| Current consumption |
4000; (US) |
| Additional voltage supply |
20...30 DC; (UA) |
| Max. current consumption from additional supply |
4000; (UA) |
| Ambient temperature |
-25...60 |
| Storage temperature |
-25...85 |
| Max. relative air humidity |
90; (non condensing) |
| Max. height above sea level |
4000 |
| Protection |
IP 65; IP 66; IP 67 |
| Protection rating (NEMA 250) |
6P |
| Degree of soiling |
2 |
| Chemical media |
| ISO 16750-5 | HLP, CC, DB, DC, DD, CA | | NEMA 250 5.13.1 | AA |
|
| EMC |
|
| Shock resistance |
|
| Vibration resistance |
| DIN EN 60068-2-64 | | | DIN EN 60068-2-6 | |
|
| Weight |
383.4 |
| Housing |
rectangular |
| Type of mounting |
Backplane mounting |
| Dimensions |
208 x 59.3 x 38.4 |
| Material |
housing: PA orange; Connectors: nickel-plated brass |
| Display |
| Power | LED, green AS-i / AUX / US / UA | | fault | LED, red |
|
| Module connection |
M12 |
| Pack quantity |
1 pcs. |
| AS-i operation |
Connector: M12; coding: A; Tightening torque: 0.6...0.8 Nm |
| AS-i operation 1...8 |
Connector: M12; coding: A; Tightening torque: 0.6...0.8 Nm |
