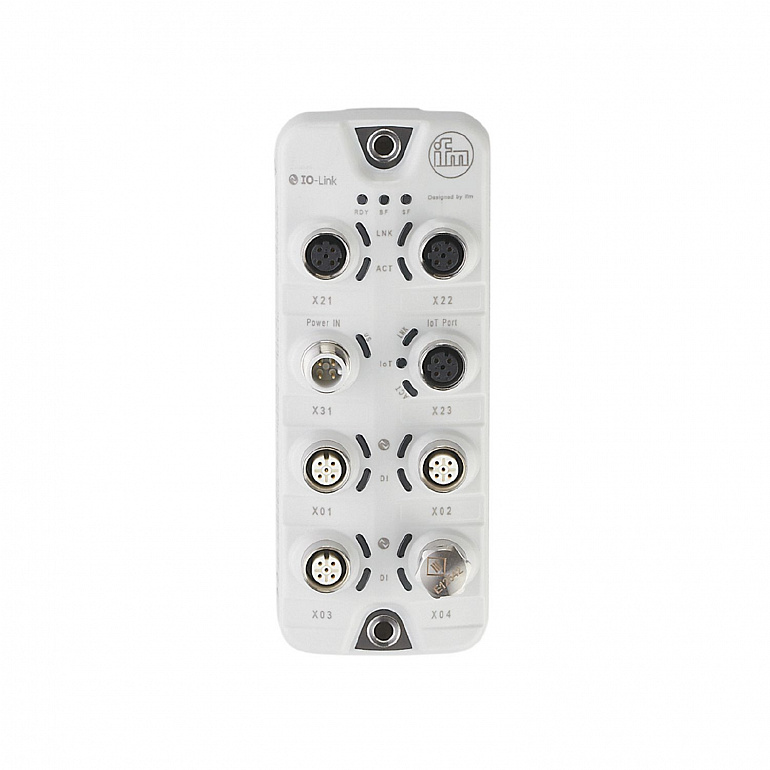

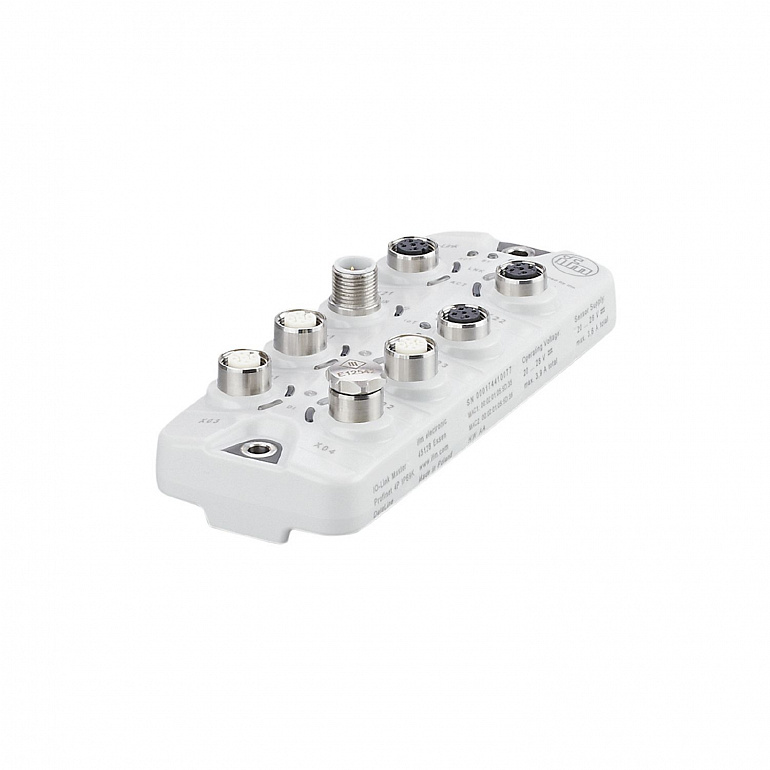

| Application |
|
| Application |
hygienic systems; I/O modules for field applications |
| Daisy-chain function |
fieldbus interface |
| Electrical data |
|
| Operating voltage |
20...28 DC; (US ; to SELV/PELV) |
| Current consumption |
300...3900; (US) |
| Protection class |
III |
| Sensor supply US |
|
| Max. current load total |
3.6 |
| Inputs / outputs |
|
| Total number of inputs and outputs |
8; (configurable) |
| Number of inputs and outputs |
Number of digital inputs: 8; Number of digital outputs: 4 |
| Inputs |
|
| Number of digital inputs |
8; (IO-Link Port Class A: 4 x 2) |
| Switching level high |
11...28 |
| Switching level low |
0...5 |
| Digital inputs protected against short circuits |
yes |
| Outputs |
|
| Number of digital outputs |
4; (IO-Link Port Class A: 4 x 1) |
| Max. current load per output |
300 |
| Short-circuit proof |
yes |
| Interfaces |
|
| Communication interface |
Ethernet; IO-Link |
| Ethernet - PROFINET |
|
| Transmission standard |
100Base-TX |
| Transmission rate |
100 MBit/s |
| Protocol |
PROFINET |
| Factory settings |
<table><tr><td>IP address: 0.0.0.0</td></tr><tr><td>subnet mask: 0.0.0.0</td></tr><tr><td>gateway IP address: 0.0.0.0</td></tr><tr><td>MAC address: see type label</td></tr></table> |
| Note on interfaces |
<table><tr><td> CC-C (Conformance Class C) (IRT-Switch)</td></tr><tr><td> Netload Class III</td></tr><tr><td> SNMP (Simple Network Management Protocol)</td></tr><tr><td> MRP (Media Redundancy Protocol)</td></tr><tr><td>Supported network topologies: line</ |
| Ethernet - Internet of Things |
|
| Transmission standard |
10Base-T; 100Base-TX |
| Transmission rate |
10 MBit/s; 100 MBit/s |
| Protocol |
MQTT JSON |
| Factory settings |
<table><tr><td>IP address: 169.254.x.x</td></tr><tr><td>subnet mask: 255.255.0.0</td></tr><tr><td>gateway IP address: 0.0.0.0</td></tr><tr><td>MAC address: see type label</td></tr></table> |
| Note on interfaces |
<table><tr><td>Safety protocol: HTTPS</td></tr></table> |
| IO-Link Master |
|
| Transmission type |
COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud) |
| IO-Link revision |
1.1 |
| Number of ports class A |
4 |
| Operating conditions |
|
| Ambient temperature |
-25...60 |
| Storage temperature |
-25...85 |
| Max. relative air humidity |
90 |
| Protection |
IP 65; IP 66; IP 67; IP 69K; (operation with stainless steel protective caps: IP 69K) |
| Protection rating (NEMA 250) |
6P |
| Degree of soiling |
2 |
| Chemical media |
<table><tr><td>ISO 16750-5</td><td>HLP, CC, DB, DC, DD, CA</td></tr><tr><td>NEMA 250 5.13.1</td><td>AA</td></tr></table> |
| Tests / approvals |
|
| EMC |
<table><tr><td>EN 61000-6-2</td><td></td></tr><tr><td>EN 61000-6-4</td><td></td></tr></table> |
| Shock resistance |
<table><tr><td>DIN EN 60068-2-27</td><td></td></tr></table> |
| Vibration resistance |
<table><tr><td>DIN EN 60068-2-64 2009-04</td><td></td></tr><tr><td>DIN EN 60068-2-6 2008-10</td><td></td></tr></table> |
| MTTF |
95 |
| Mechanical data |
|
| Weight |
314 |
| Housing |
rectangular |
| Type of mounting |
Backplane mounting |
| Dimensions |
152 x 59.3 x 38.4 |
| Material |
housing: PA grey; Socket: stainless steel (1.4404 / 316L) |
| Sealing material |
EPDM |
| Accessories |
|
| Items supplied |
<table><tr><td>Protective cap: 1 x M12, stainless steel, E12542</td></tr></table> |
| Remarks |
|
| Remarks |
<table><tr><td> Further information is available in the manual.</td></tr></table> |
| Pack quantity |
1 pcs. |
| Electrical connection - Ethernet |
|
| PROFINET X21, X22 |
Connector: 3 x M12; coding: D; sealing: EPDM |
| Electrical connection - IO-Link |
|
| IO-Link Port Class A X01...X04 |
Connector: 4 x M12; coding: A; sealing: EPDM |
| Electrical connection - voltage supply |
|
| X31 |
Connector: 1 x M12; coding: A |
