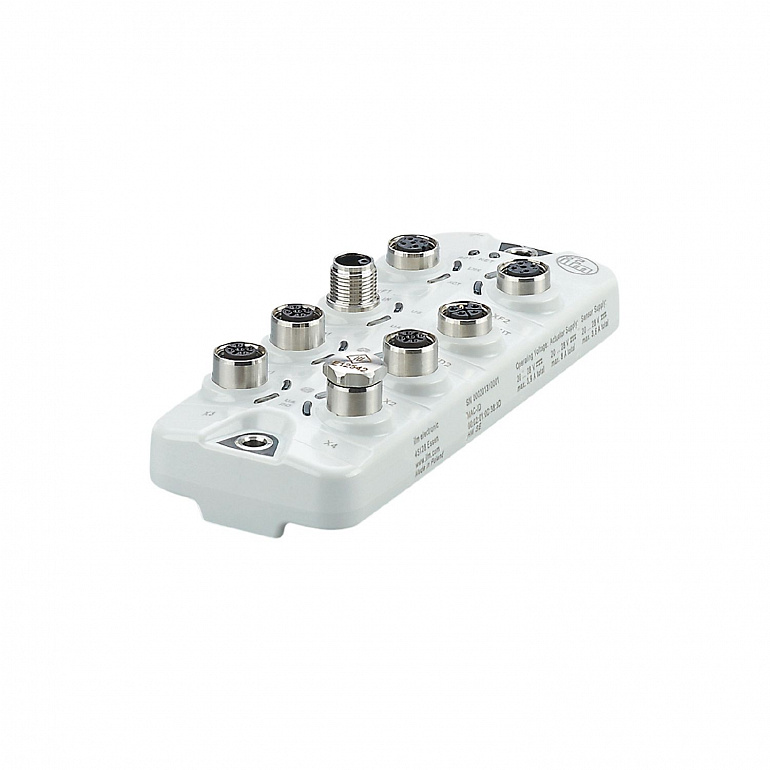

| Application |
hygienic systems; I/O modules for field applications |
| Daisy-chain function |
voltage supply; fieldbus interface |
| Operating voltage |
20...28 DC; (US ; to PELV) |
| Current consumption |
300...3900; (US) |
| Protection class |
III |
| Additional voltage supply |
20...30 DC; (UA) |
| Max. current load per output |
2000 |
| Max. current load per output |
2000 |
| Total number of inputs and outputs |
12; (configurable) |
| Number of inputs and outputs |
Number of digital inputs: 4; Number of digital outputs: 8 |
| Number of digital inputs |
4; (IO-Link Port Class B: 4 x 1) |
| Switching level high |
11...30 |
| Switching level low |
0...5 |
| Digital inputs protected against short circuits |
yes |
| Number of digital outputs |
8; (IO-Link Port Class B: 4 x 2) |
| Short-circuit proof |
yes |
| Communication interface |
Ethernet; IO-Link |
| Transmission standard |
10Base-T; 100Base-TX |
| Transmission rate |
10 MBit/s; 100 MBit/s |
| Protocol |
EtherNet/IP |
| Factory settings |
| IP address: 192.168.1.250 | | subnet mask: 255.255.255.0 | | gateway IP address: 0.0.0.0 | | MAC address: see type label |
|
| Note on interfaces |
| DHCP, BOOTP, static | | DLR (Device Level Ring) | | Supported network topologies: line | | ring |
|
| Transmission type |
COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud) |
| IO-Link revision |
1.1 |
| Number of ports class B |
4 |
| Ambient temperature |
-25...60 |
| Storage temperature |
-25...85 |
| Max. relative air humidity |
90 |
| Protection |
IP 65; IP 66; IP 67; IP 69K; (operation with stainless steel protective caps: IP 69K) |
| Protection rating (NEMA 250) |
6P |
| Degree of soiling |
2 |
| Chemical media |
| ISO 16750-5 | HLP, CC, DB, DC, DD, CA | | NEMA 250 5.13.1 | AA |
|
| EMC |
|
| Shock resistance |
|
| Vibration resistance |
| DIN EN 60068-2-64 2009-04 | | | DIN EN 60068-2-6 2008-10 | |
|
| MTTF |
60 |
| Weight |
351.8 |
| Housing |
rectangular |
| Type of mounting |
Backplane mounting |
| Dimensions |
152 x 59.3 x 38.4 |
| Material |
housing: PA grey; Socket: stainless steel (1.4404 / 316L) |
| Sealing material |
EPDM |
| Items supplied |
| Protective cap: 1 x M12, stainless steel, E12542 |
|
| Remarks |
| Further information is available in the manual. |
|
| Pack quantity |
1 pcs. |

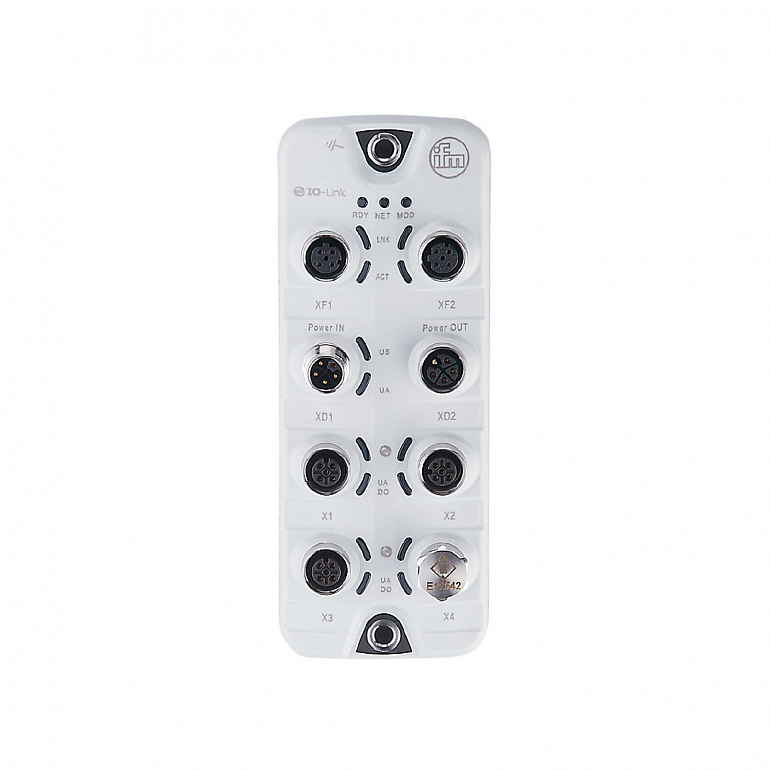

| IN / OUT XF1, XF2 |
Connector: 2 x M12; coding: D; sealing: EPDM |
| IO-Link Port Class B X1...X4 |
Connector: 4 x M12; coding: A; sealing: EPDM |
| XD1 |
Connector: 1 x M12; coding: L |
| XD2 |
Connector: 1 x M12; coding: L; sealing: EPDM |
