| Application |
parameter setting and analysis of units |
| Components |

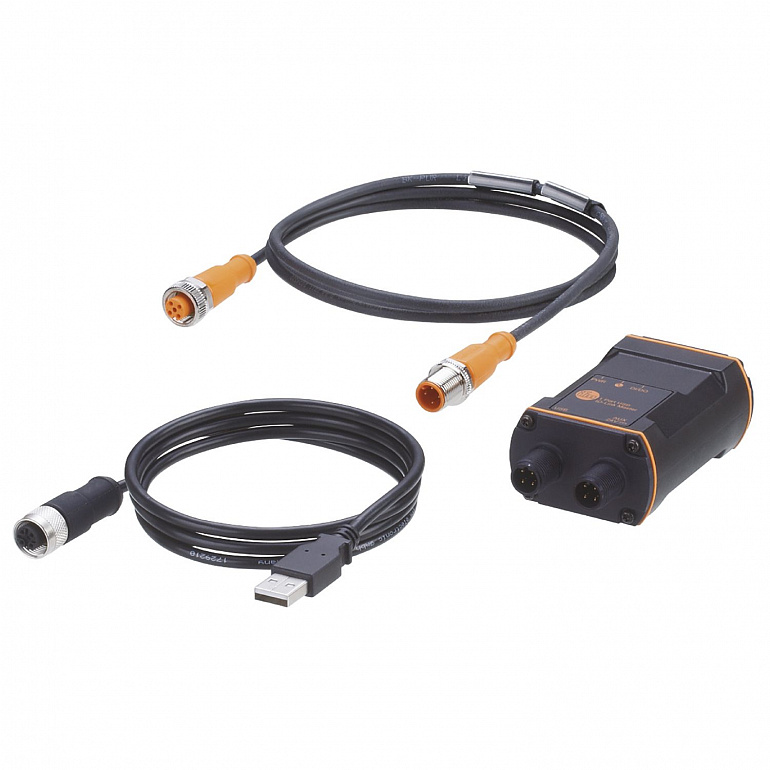

| USB IO-Link master: 1, AL1060 | | Connection cable: 1 m, M12 A-coded, EVC012 | | USB cable: 1 m, M12 B-coded, E12689 |
|
| Nominal voltage DC |
5; (USB) |
| Current consumption |
< 1100; (USB) |
| Protection class |
III |
| Sensor supply |
24 V DC |
| Current rating per port |
0.65 |
| Current rating per port |
0.15 |
| Number of inputs and outputs |
Number of digital inputs: 2; Number of digital outputs: 2 |
| Number of digital inputs |
2; (IO-Link port Class A : 1 x 2) |
| Switching level high |
11...30 |
| Switching level low |
0...5 |
| Short-circuit protection digital inputs |
yes |
| Number of digital outputs |
2; (IO-Link port Class A: 1 x 2) |
| Max. current load per output |
150 |
| Short-circuit proof |
yes |
| Communication interface |
IO-Link; USB |
| Number of USB interfaces |
1 |
| Transmission type |
COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud) |
| IO-Link revision |
1.1 |
| Number of ports class A |
1 |
| Version |
USB 2.0 |
| Ambient temperature |
-25...50 |
| Storage temperature |
-25...85 |
| Max. relative air humidity |
90 |
| Protection |
IP 65; IP 67 |
| EMC |
| DIN EN 61000-6-2 | | | DIN EN 61000-6-4 | |
|
| Shock resistance |
|
| Vibration resistance |
| DIN EN 60068-2-64 | | | DIN EN 60068-2-6 | |
|
| Weight |
388.3 |
| Material |
housing: PA; Socket: PA; lock nut: nickel-plated brass |
| Sealing material |
FKM |
| Display |
| PWR | 1 x LED, green/red voltage supply | | IO-Link | 1 x LED, green/red communication | | DI/DO | 1 x LED, orange digital input/output |
|
| Accessories (optional) |
| Switched-mode power supply 24 V DC:, M12 A-coded, E80121 |
|
| Pack quantity |
1 pcs. |
|
Connector: 1 x M12; coding: A |
|
Connector: 1 x M12; coding: A; sealing: FKM |
|
Connector: 1 x M12; coding: B |
