| Operating voltage |
18...32 DC |
| Current consumption |
< 35 |
| Min. insulation resistance |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Output signal |
IO-Link |
| Electrical design |
PNP |
| Max. voltage drop switching output DC |
0.5 |
| Permanent current rating of switching output DC |
500; (briefly: 2 A / 50 ms) |
| Type of short-circuit protection |
depending on the connected sensor |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| Profiles |
no profile |
| SIO mode |
no |
| Required master port class |
A |
| Min. process cycle time |
2.5 |
| Transmission type |
COM1 (4,8 kBaud); COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 (Draft) |
| Number of ports class A |
1 |
| Ambient temperature |
-25...60 |
| Storage temperature |
-40...85 |
| Protection |
IP 65; IP 67 |
| EMC |
|
| Shock resistance |
| DIN IEC 68-2-27 | 50 g 11 ms |
|
| Vibration resistance |
| DIN IEC 68-2-6 | 20 g (10...2000 Hz) |
|
| MTTF |
655.69 |
| Weight |
116.5 |
| Housing |
rectangular |
| Dimensions |
52 x 25 x 18 |
| Material |
PA PACM 12 (TROGAMID); PET |
| Sealing material |
FKM |
| Display |
|
| Remarks |

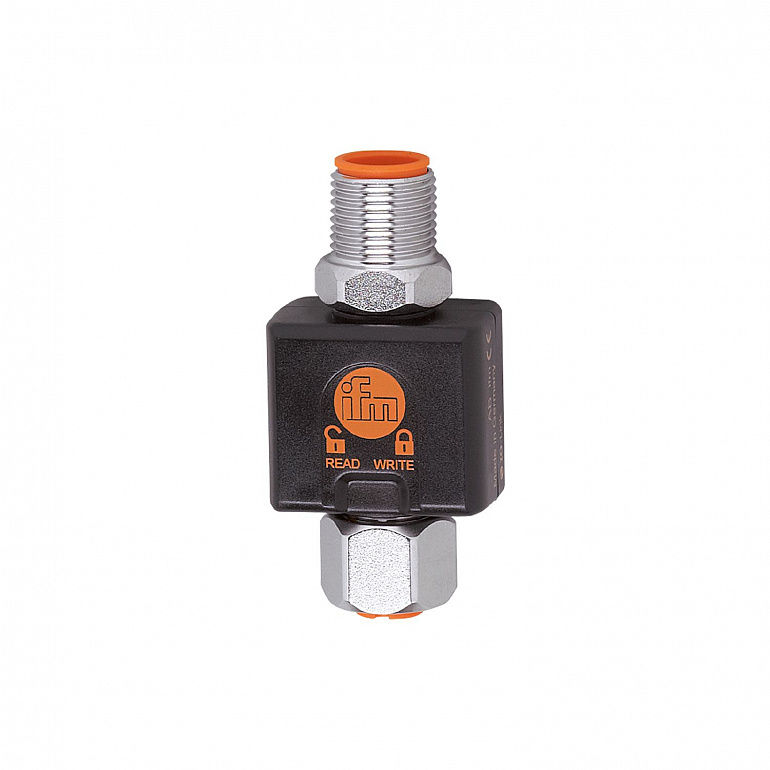

| Only for positive switching sensors | | The memory plug acts as master if it is connected with a sensor. | | The memory plug acts as device if it is used with the service program. | | cULus - Class 2 source required |
|
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A; Moulded body: TPU (urethane); Locking: stainless steel (1.4404 / 316L); sealing: FKM |
