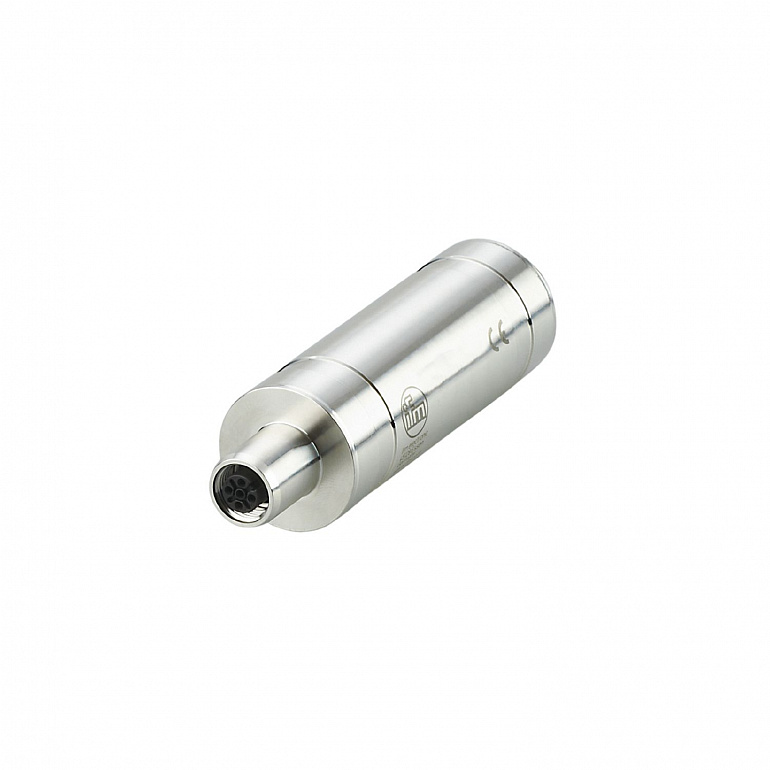

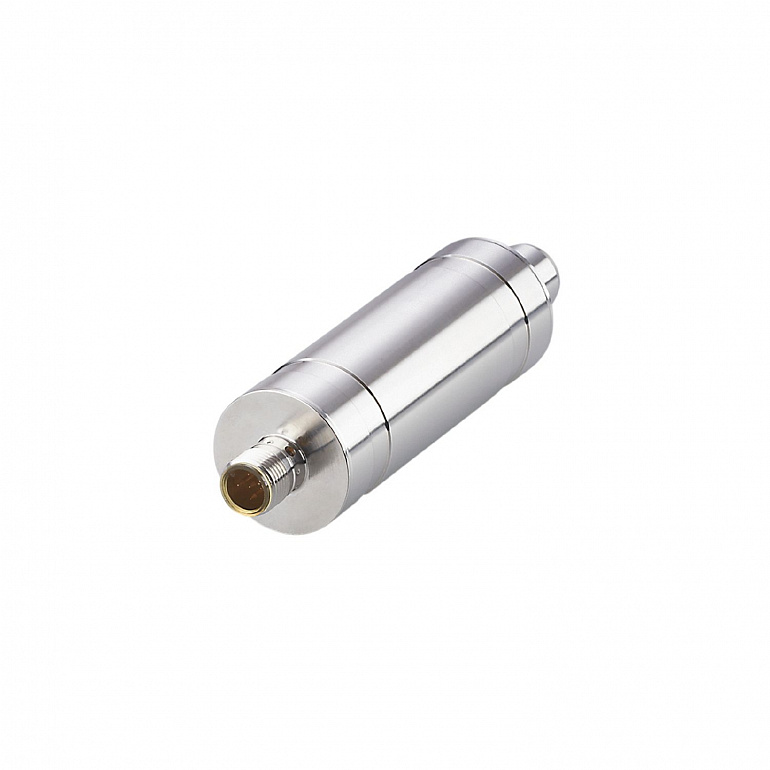

| System |
gold-plated contacts |
| Operating voltage |
18...30 DC |
| Nominal voltage DC |
24 |
| Current consumption |
< 20 |
| Protection class |
III |
| Reverse polarity protection |
yes; (on the master side) |
| Overvoltage protection |
yes; (integrated) |
| Surge protection for voltage |
| between L-, pin 5 and ground | between L+, signal cables and ground | | Umax = 45 V for surge | Umax = 90 V for surge | | Umin = 30 V for normal operation | Umin = 60 V for normal operation |
|
| Surge protection for current |
| surge current | leakage current | | Imax = 25 A | Imax = 10 µ |
|
| Power-on delay time |
< 2; (per repeater) |
| Current rating per port |
0.84; (Port Class A; Port Class B: 2) |
| Delay time acyclic data |
up to 2 cycles; (per repeater) |
| Delay time process data |
up to 1 cycle; (per repeater) |
| Communication interface |
IO-Link |
| Unterstützte IO-Link Revision |
1.0; 1.1 |
| Unterstützte Masterportklasse |
A / B |
| Transmission type |
COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud) |
| SDCI standard |
IEC 61131-9 |
| SIO mode |
no |
| Ambient temperature |
-25...65 |
| Storage temperature |
-40...85 |
| Protection |
IP 68; IP 69K; (7 days / 3 m water depth / 0.3 bar: IP 68) |
| EMC |
| DIN EN 61000-6-2 | | | DIN EN 61000-6-4 | in plastic or open metal tanks |
|
| Shock resistance |
| DIN EN 60068-2-27 | 50 g (11 ms) |
|
| Vibration resistance |
| DIN EN 60068-2-6 | 20 g (10...2000 Hz) |
|
| MTTF |
409 |
| UL approval |
|
| Weight |
212 |
| Material |
stainless steel (1.4404 / 316L); PEI; PA fiber-reinforced; FKM; Grounding clamp: stainless steel (1.4301 / 304) |
| Display |
| 1 x LED | | Power | green | | IO-Link | green | | fault | red |
|
| Remarks |
| For information on the maximum cable length please refer to the operating instructions. | | functional grounding via premounted grounding clamp | | for further information please see the operating instructions |
|
| Pack quantity |
1 pcs. |
