| System |
gold-plated contacts |
| Application |

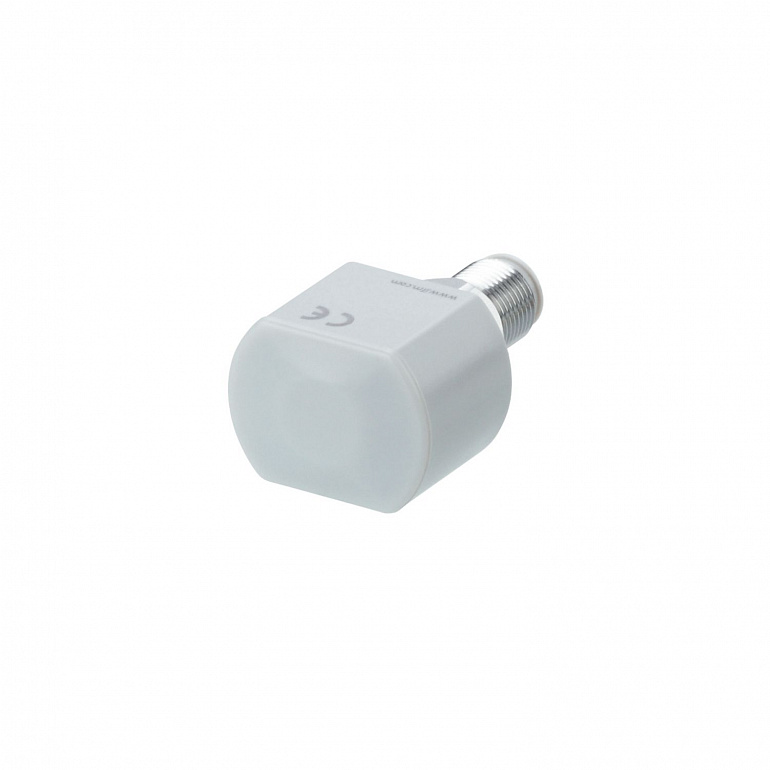

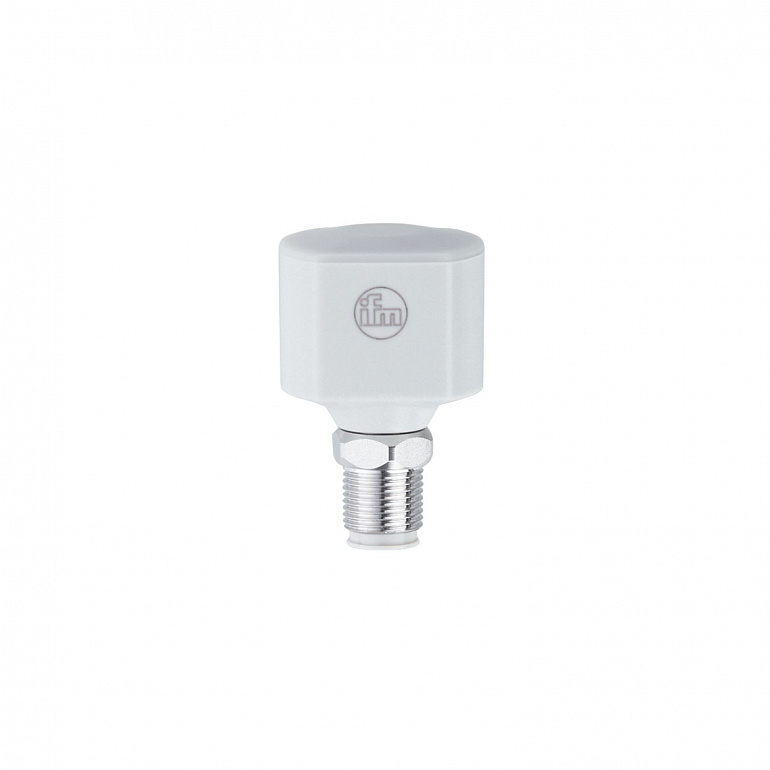

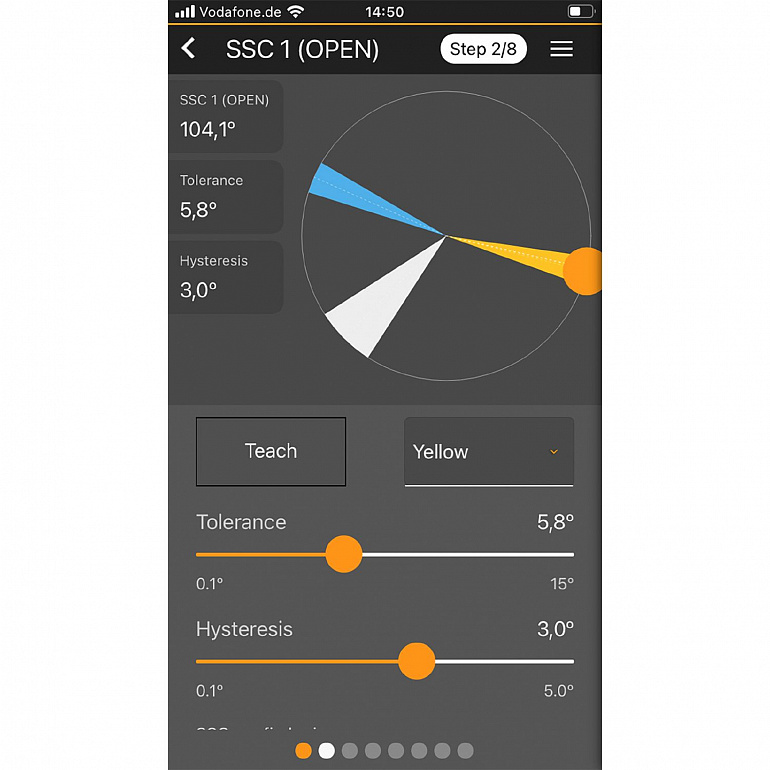

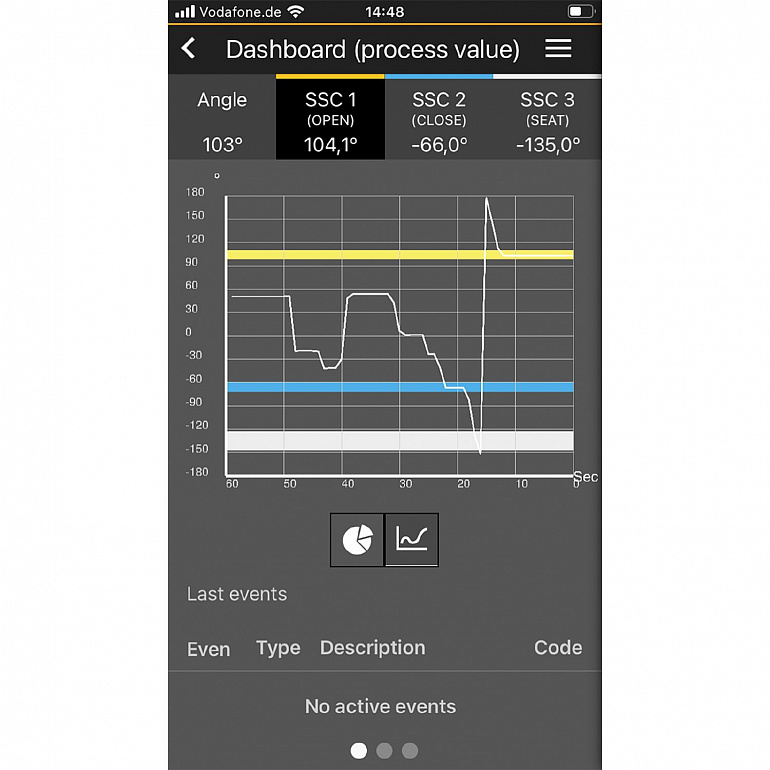

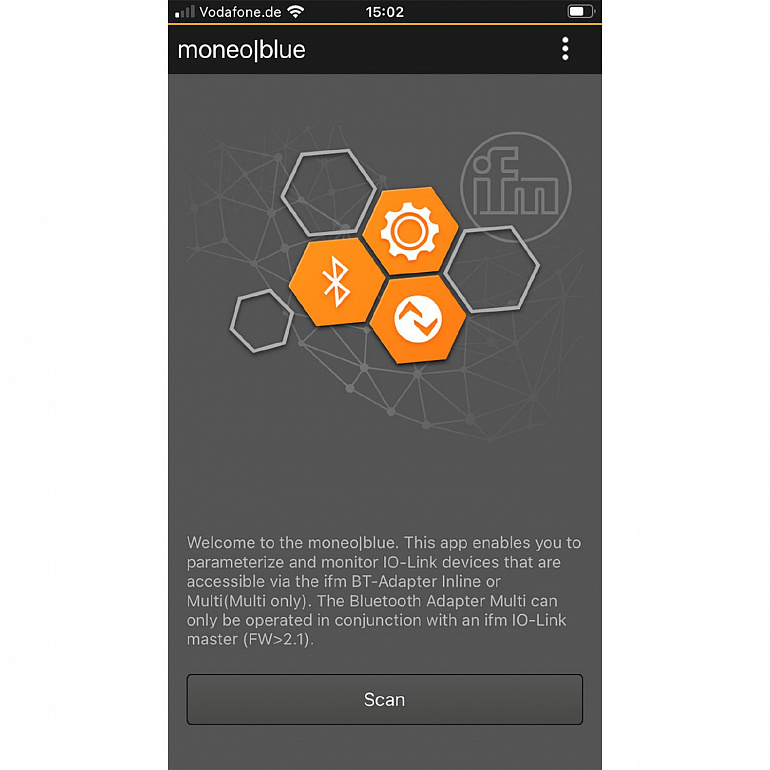

display of all process values of the sensors connected to the same master; device setup and diagnosis; parameter setting and analysis of units; Nur funktionsfähig mit ifm IO-Link Master ab Firmware 2.1 |
| Radio approval for |
EU/RED; Australia; USA; New Zealand; Canada; Japan; Brazil; China; South Africa; Argentina; Singapore; Mexico; Malaysia; Vietnam; Chile; Thailand; Taiwan; South Korea; India; Namibia; Indonesia |
| Note on radio approval |
| The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”. |
|
| Operating voltage |
18...30 DC |
| Nominal voltage DC |
24 |
| Current consumption |
< 30 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
for IO-Link communication < 0,3; Bluetooth < 1 |
| Transmission type |
COM3 (230,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| Function | Device identification | | Function | Device diagnosis | | Function | Extended identification |
|
| Required master port class |
A |
| Min. process cycle time |
2.3 |
| Parameter setting options |
process value recording |
| Communication interface |
IO-Link; Bluetooth |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| IO-Link Device | 1313 |
|
| Transmission standard |
BLE 4.0; BLE 4.1; BLE 4.2; EDR 2.0; EDR 2.1 |
| Frequency band |
2,4 - 2,482 GHz |
| Transmission power |
10; (10 dBm) |
| Range |
typ. 20 m |
| Ambient temperature |
-25...60 |
| Storage temperature |
-40...70 |
| Protection |
IP 67; IP 69K |
| EMC |
| DIN EN 61000-6-2 | | | DIN EN 61000-6-3 | in a closed metal tank |
|
| Shock resistance |
| DIN EN 60068-2-27 | 15 g (6 ms) |
|
| Vibration resistance |
| DIN EN 60068-2-6 | 2 g (10...150 Hz) |
|
| MTTF |
281 |
| UL approval |
| Ta | max. 55 °C | | Enclosure type | Type 1 | | voltage supply | Low Voltage / Limited Energy | | File number UL | E205959 |
|
| Weight |
94 |
| Material |
stainless steel (1.4404 / 316L); PA; sealing: FKM; |
| Display |
| Power Bluetooth error | 1 x LED, three-color |
|
| Remarks |
| the device complies with overvoltage category II |
|
| Pack quantity |
1 pcs. |
| Connection |

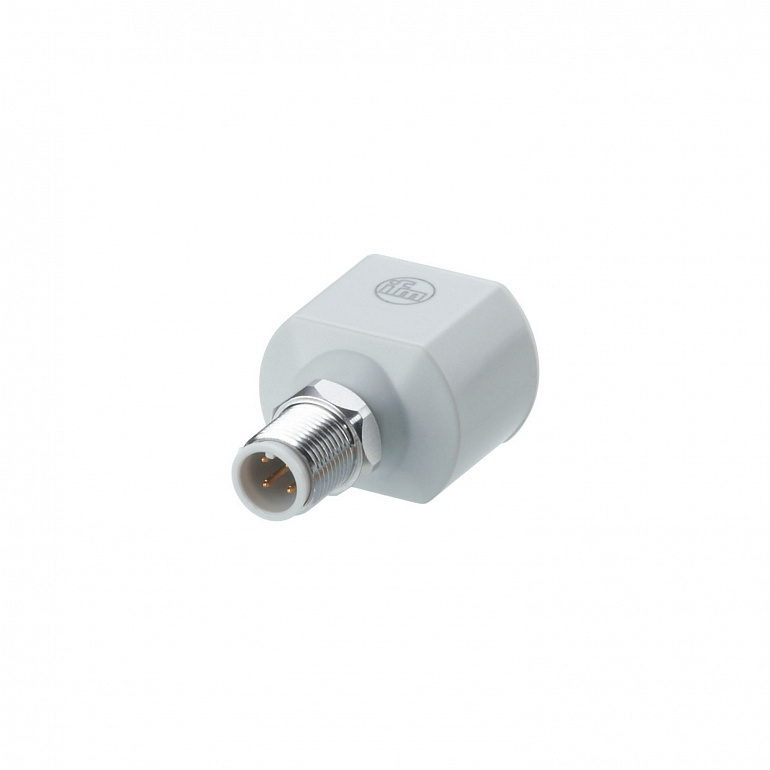

Connector: 1 x M12; coding: A; Contacts: gold-plated |
