| System |
Free from silicone |
| Application |
field installation |
| Free from silicone |
yes |
| Operating voltage |
20...30 DC |
| Protection class |
III |
| Max. current load per module/slot |
16 |
| Max. current load total |
16 |
| Ambient temperature |
-25...60 |
| Storage temperature |
-25...55 |
| Storage humidity |
10...100 |
| Other climatic conditions for storage according to stated class |
|
| Protection |
IP 67; (with mounted connectors or protective caps) |
| Weight |
317.751 |
| Material |
housing: PA orange |
| Material nut |
brass, nickel-plated |
| Sealing material |
FKM |
| Display |
| Power | 1 x LED, green US | | Power | 1 x LED, green UA |
|
| Pack quantity |
1 pcs. |

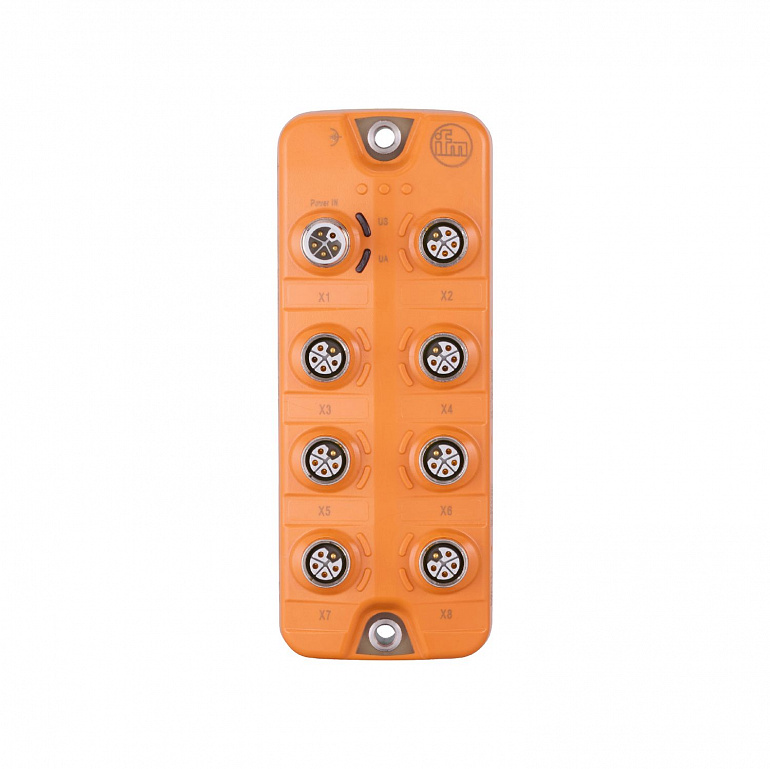

| X1 |
Connector: 1 x M12; coding: L; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm |
| X2...8 |
Connector: 7 x M12; coding: L; Locking: brass, nickel-plated; sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm |
