| System |
Free from silicone |
| Application |
sanitary and wet areas in the food industry |
| Free from silicone |
yes |
| Operating voltage |
20...30 DC |
| Protection class |
III |
| Max. current load per module/slot |
16 |
| Max. current load total |
16 |
| Ambient temperature |
-25...60 |
| Storage temperature |
-25...55 |
| Storage humidity |
10...100 |
| Other climatic conditions for storage according to stated class |
|
| Protection |
IP 65; IP 67; IP 69K; (with mounted connectors or protective caps) |
| Weight |
328.377 |
| Material |
housing: PA grey Halogen-free; Protective cap: stainless steel |
| Material nut |
stainless steel (1.4404 / 316L) |
| Sealing material |
EPDM |
| Display |
| Power | 1 x LED, green US | | Power | 1 x LED, green UA |
|
| Items supplied |
| Protective cap: 1 x M12, E12542 |
|
| Pack quantity |
1 pcs. |

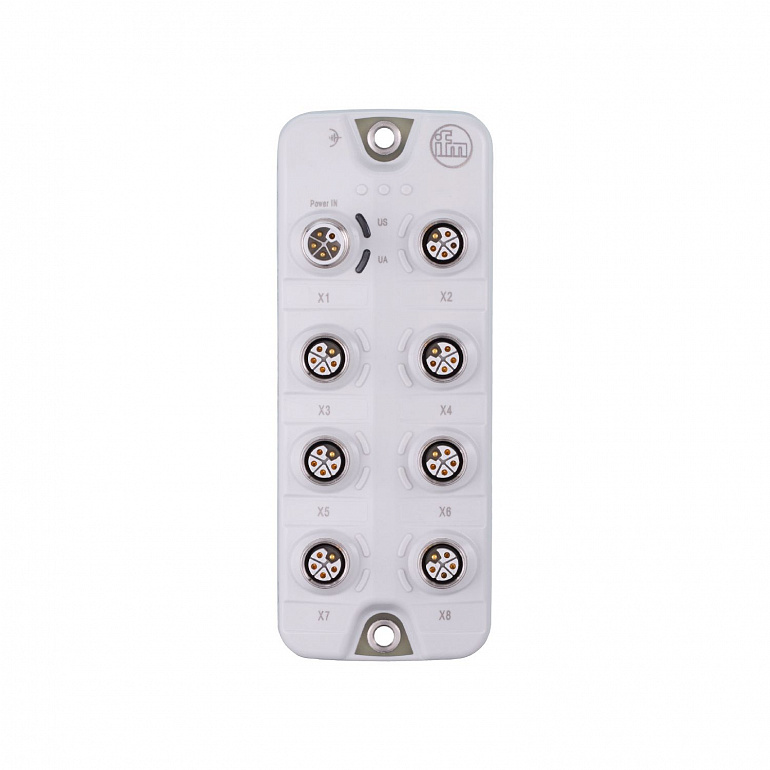

| X1 |
Connector: 1 x M12; coding: L; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm |
| X2...8 |
Connector: 7 x M12; coding: L; Locking: stainless steel (1.4404 / 316L); sealing: EPDM; Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm |
