| Operating voltage |
18...30 DC |
| Current consumption |
50; (US) |
| Protection class |
III |
| Additional voltage supply |
18...30 DC; (UA) |
| Max. current consumption from additional supply |
16000; (UA) |
| Total number of inputs and outputs |
16 |
| Number of inputs and outputs |
Number of digital inputs: 16; Number of analog inputs: 8; Number of frequency inputs: 2; Number of digital outputs: 16 |
| Number of frequency inputs |
2 |
| Number of digital inputs |
16; (configurable) |
| Input circuit of digital inputs |
PNP; (type 3 (IEC 61131-2)) |
| Sensor supply of the inputs |
AUX (UA) |
| Voltage supply |
18...30 |
| Input current High |
2...15 |
| Input current low |
0...1.5 |
| Switching level high |
11...28 |
| Switching level low |
0...5 |
| Number of analog inputs |
8; (configurable current/voltage input) |
| Analog input (current) |
4...20 |
| Analog input (voltage) |
0...10 |
| Resolution of analog input |
16 Bit |
| Precision analog input |
0,3 |
| Number of digital outputs |
16; (configurable) |
| Max. current load per output |
2000 |
| Max. current load outputs total |
16 |
| Short-circuit protection |
yes |
| Actuator supply outputs |
AUX (UA) |
| Number of PWM outputs |
8; (acyclic enhanced modus) |
| Number of PWM-I outputs |
2; (acyclic enhanced modus) |
| PMW/PWM-I output |
| max. current PWM-I output [mA] | 2000 | | available factors for the controller [PID] | Kp, Ki, Kd | | currently requested resolution [mA] | 1 | | Accuracy PWM-I Ausgang [%] | 2,2 | | range of the PWM output pulse/pause ratio [‰] | 0...1000 | | switch-on time resolution ‰] | 1 | | PWM/PWM-I frequency range [Hz] | 20...1000 | | number of configurable frequencies | 2 | | number of PWM outputs with optional dither | 8 | | dither level [‰] | 1...250 | | dither number | 1...20 |
|
| Sampling rate |
0...3000 |
| Communication interface |
IO-Link |
| Transmission type |
COM3 (230,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| SIO mode |
no |
| Required master port class |
A |
| Min. process cycle time |
4 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| Acyclic enhanced parametrisation | 1449 | | Acyclic parametrisation | 1316 | | Cyclic parametrisation | 1315 |
|
| Note |
| Parameter setting can be changed from “cyclic” to “acyclic” and “acyclic enhanced” | | For further information please see the IODD PDF file at "Downloads" |
|
| Ambient temperature |
-25...60 |
| Storage temperature |
-25...70 |
| Max. relative air humidity |
90 |
| Max. height above sea level |
2000 |
| Protection |
IP 65; IP 67 |
| Protection rating (NEMA 250) |
6P |
| Degree of soiling |
2 |
| Chemical media |
| ISO 16750-5 | AA, BA, BD, HLP, CC, DB, DC, DD, CA | | NEMA 250 5.13.1 | AA |
|
| EMC |
| EN 61000-6-2 | | | EN 61000-6-3 | | | IEC 61131-9 | |
|
| Shock resistance |
|
| Vibration resistance |
| DIN EN 60068-2-64 | | | DIN EN 60068-2-6 | |
|
| Weight |
398.1 |
| Dimensions |
26 x 59.3 x 208 |
| Material |
housing: PA orange; Socket: brass nickel-plated |
| Sealing material |
FKM |
| Tightening torque |
< 0.8 |
| Display |
| Power | 4 x LED, green | | fault | 3 x LED, red | | Function | 16 x LED, yellow |
|
| Accessories (optional) |
| protective cap for M12 sockets |
|
| Remarks |
| Using the device within a system with requirements for functional safety is possible by deactivating the actuator voltage UA without interaction. | | For further information on functional safety, please refer to the operating instructions supplement under “Downloads”. |
|
| Pack quantity |
1 pcs. |

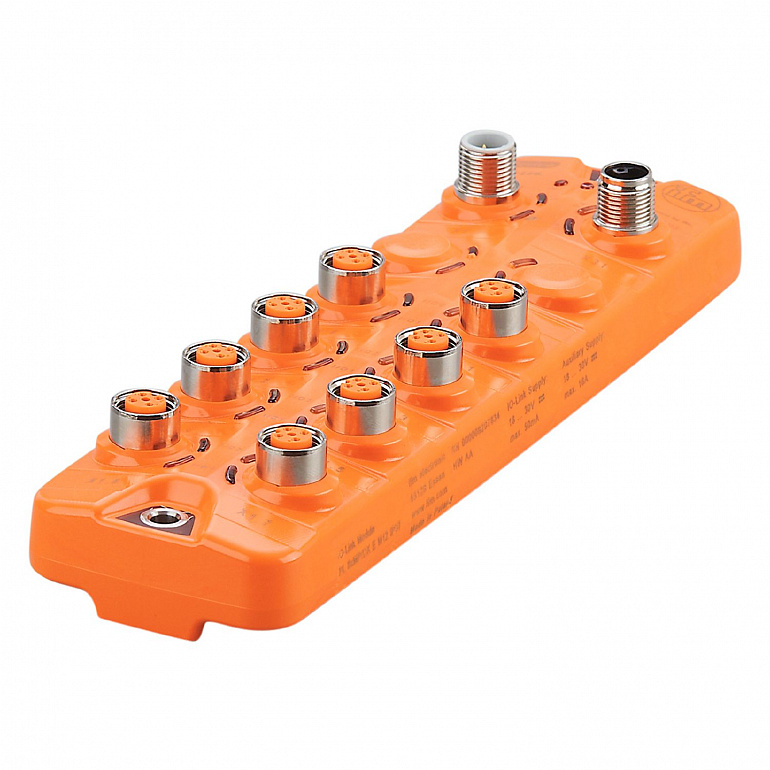

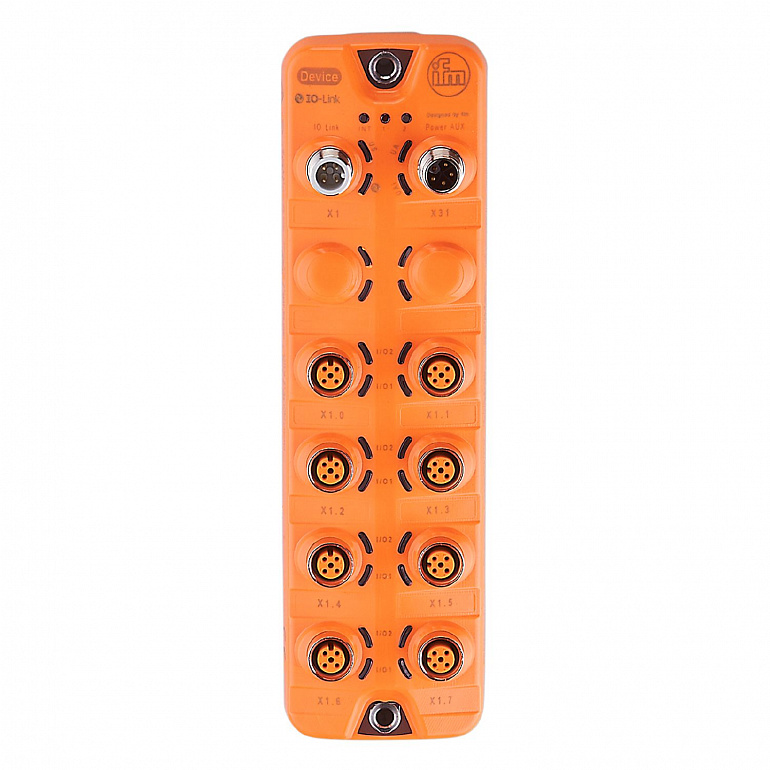

| X31 |
Connector: 1 x M12; coding: L |
| X1 |
Connector: 1 x M12; coding: A |
| X1.0...X1.7 |
Connector: 8 x M12; coding: A; sealing: FKM |
